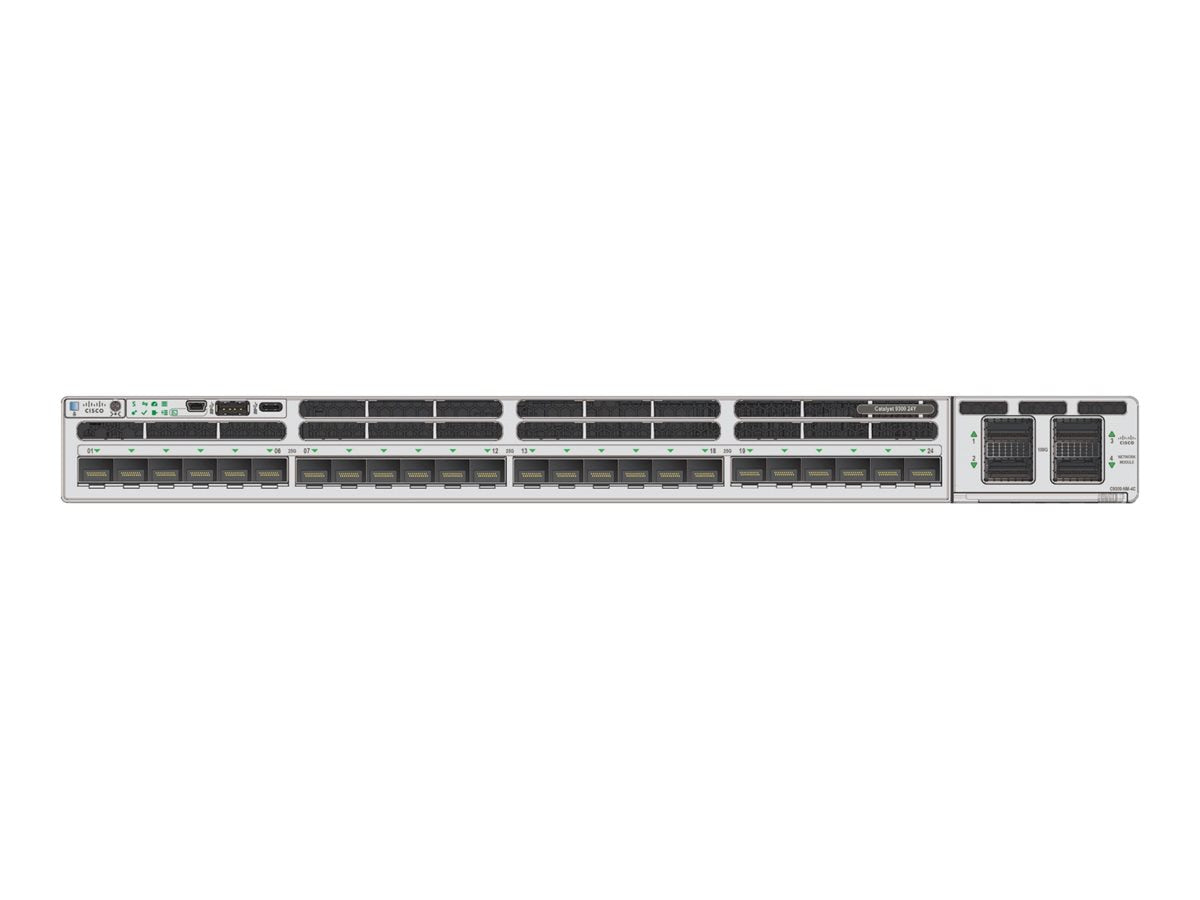

Switch de Red Cisco Catalyst 9300X, C9300X-24Y-E
Promo Online 🔥
Descripción:
Sobre este producto
- 🔌 Conectividad 24 x 1/10/25 Gigabit SFP28 de alta velocidad
- 🏢 Plataforma de switching apilable líder de acceso empresarial de Cisco
- 🧠 Switch Layer 3 gestionado con licencia Network Essentials
- 🗄️ Parte de la familia Catalyst 9000, montable en rack para redes híbridas
| Característica | Detalle |
|---|---|
| Marca | Cisco |
| Línea de producto | Cisco Catalyst |
| Modelo | 9300X |
| Edition | Network Essentials |
| Fabricante | Cisco Systems |
| Flash Memory Installed | 16 GB |
| RAM instalada | 16 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Características | 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-1T technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Manageable | Yes |
| Ports | 24 |
| Tipo de producto | Switch |
| Gestión remota | CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3 |
| Routing Protocol | IGMP, IS-IS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP |
| Stackable | Stackable |
| Status Indicators | Status |
| Subcategory | Network hubs and switches |
| Switching Type | 25 Gigabit Ethernet |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x USB 2.0, 24 x 1/10/25GBase-X SFP28 |
| Port Quantity | 24 |
| Port Type | 1/10/25 Gigabit SFP28 |
| Frequency | 50/60 hertz |
| Potencia | 715 watt |
| Encryption | 256-bit AES |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 23 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Humedad de operación | 5 - 90% (non-condensing) |
| Capacity | ACL scale entries: 5000, Direct IPv4 routes: 24000, Flexible NetFlow entries: 128000, Indirect IPv4 routes: 15000, IPv4 routing table entries: 39000, IPv6 routing table entries: 19500, Multicast routing flow table: 8000, PVST instances: 300, QoS scale entries: 4000, Routed ports: 448, STP Virtual Ports for MST: 13000, STP Virtual Ports for PVST: 13000, Switched virtual interfaces (SVIs): 1000, VLAN IDs: 4094 |
| Device Type | Internal power supply |
| Cantidad por empaque | 1 |
| Performance | Forwarding rate with stacking: 2232 Mpps, Forwarding rate: 1488 Mpps, Switching capacity with stacking: 3000 Gbps, Switching capacity: 2000 Gbps |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Ancho | 17.5 inch |
| Profundidad | 17.6 inch |
| Color | Gray |
| Certificado ENERGY STAR | No |
Switch de Red Cisco Catalyst 9300X, C9300X-24Y-E
Precio de oferta$128.459.000,00 COP
Precio normal$158.005.000,00 COP
