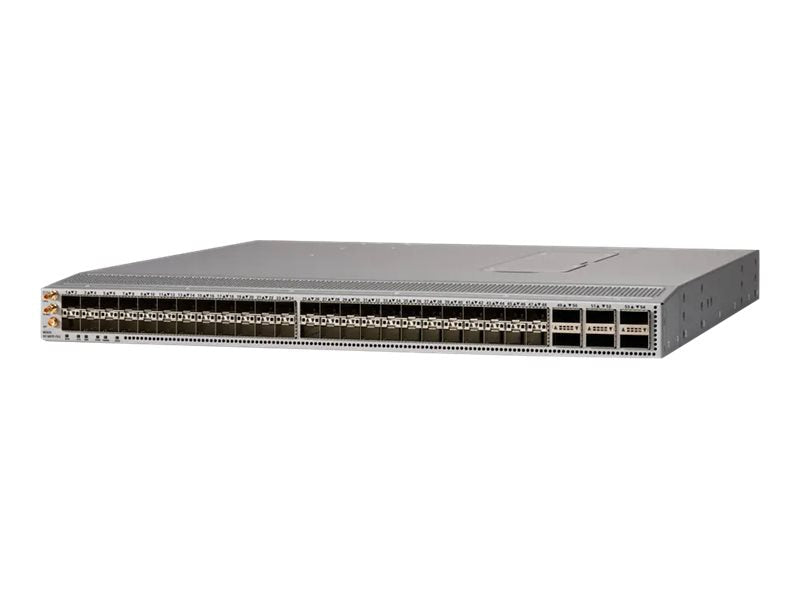

Switch de Red Cisco Nexus 93180YC-FX3
Promo Online 🔥
Descripción:
Sobre este producto
- ⚡ 3.6 Tbps de ancho de banda y 1.2 bpps: switch Cisco Nexus 93180YC-FX3 de altísimo rendimiento en formato 1RU.
- 🔢 48 puertos downlink 1/10/25 Gbps + 6 uplinks 40/100 Gbps QSFP28: flexibilidad de despliegue y protección de la inversión.
- 🛠️ Administrable y Layer 3 (L3): opciones de migración flexibles con enlaces de subida configurables.
- 🕐 Soporte de PTP Telecom con SyncE y boundary clock: para entornos de borde de data center Telco.
- 🗄️ Montable en rack: pensado para el data center.
| Característica | Detalle |
|---|---|
| Marca | Cisco |
| Línea de producto | Cisco Nexus |
| Modelo | 93180YC-FX3 |
| Fabricante | Cisco Systems |
| RAM instalada | 32 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1ae, ITU-T G.8275.1 |
| Características | 4 fans, Access Control List (ACL) support, Approximate Fair Dropping (AFD), Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Dynamic Packet Prioritization (DPP), Elephant Trap (ETRAP), Enhanced transmission selection (ETS), Ethernet Virtual Private Network (EVPN), Explicit Congestion Notification (ECN), Flow control, Media Access Control Security (MACsec), NAT support, Precision Time Protocol (PTP), Priority-Based Flow Control (PFC), RDMA support, Switched Port Analyzer (SPAN), Synchronous Ethernet (SyncE), Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology, VXLAN tunnel endpoints (VTEP) support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| MAC Address Table Size | 512K entries |
| Manageable | Yes |
| Ports | 48 |
| Tipo de producto | Switch |
| Gestión remota | CLI, HTTP, HTTPS, IPv6, JSON, NETCONF, RESTCONF |
| Routing Protocol | BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2, RSVP |
| Subcategory | Network hubs and switches |
| Switching Type | 25 Gigabit Ethernet |
| Interfaces | 1 x management RJ-45, 1 x serial (RS-232), 1 x ToD RJ-45, 1 x USB, 48 x 1/10/25GBase-X SFP+, 6 x 40/100GBase-X QSFP28 |
| Port Quantity | 48 |
| Port Type | 1/10/25 Gigabit SFP+ |
| Ports Type (2nd) | 40/100 Gigabit QSFP28 |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 375 watt |
| Fuentes soportadas | 2 |
| Fuente redundante | Optional |
| Fuente redundante soportada | N+1 |
| Dispositivos integrados | 128 GB SSD |
| Temp. máx. de operación | 104 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | 288,760 Hours |
| Humedad de operación | 5 - 95% (non-condensing) |
| Capacity | ACL entries (egress): 2000, ACL entries (ingress): 5000, Buffer capacity (MB): 40, ECMP paths: 64, Fabric extenders per switch: 16, Flow-table size used for Cisco Tetration Analytics platform: 64000, HSRP groups: 490, IGMP snooping groups (maximum): 32000, IGMP snooping groups (shipping): 8000, IP host entries: 1792000, Longest prefix match (LPM) routes: 1792000, Maximum number of links in a port channel: 32, MST instances: 64, Multicast routes: 128000, NAT entries: 1023, Port channels: 512, Queues: 8, RPVST instances: 3967, SPAN sessions: 4, VLANs supported: 4096, VRF instances (maximum): 16000, VRF instances (shipping): 1000 |
| Device Type | Internal power supply |
| Cantidad por empaque | 1 |
| Performance | Bandwidth: 3.6 Tbps |
| Ports (2nd) Quantity | 6 |
| Alto | 1.7 inch |
| Weight | 20.99 lbs |
| Ancho | 17.3 inch |
| Profundidad | 19.5 inch |
| Color | Gray |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
Switch de Red Cisco Nexus 93180YC-FX3
Precio de oferta$76.909.000,00 COP
Precio normal$95.367.000,00 COP
