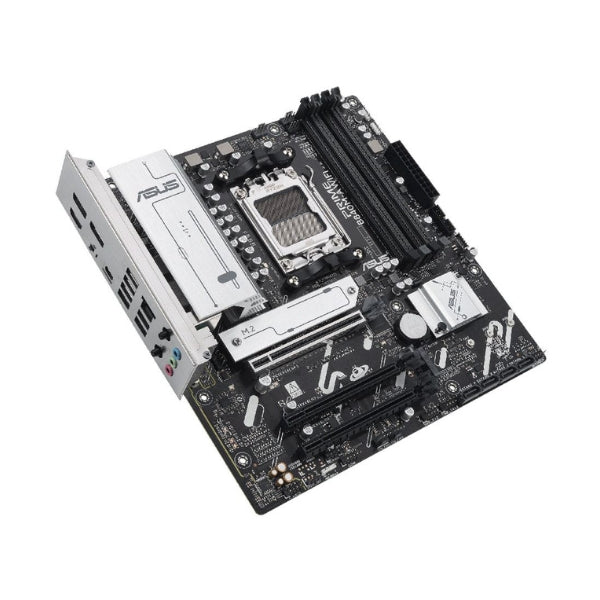

Tarjeta Madre ASUS B840M-A PRIME WIFI-CSM B840 Socket AMD AM5 DDR5 Micro-ATX
Promo Online 🔥
Descripción:
Sobre este producto
- 🤖 Advanced AI PC-ready en microATX — formato compacto optimizado por software y firmware para aplicaciones de IA exigentes.
- ⚙️ Chipset AMD B840 y socket AM5 — compatible con procesadores AMD Ryzen serie 9000; BIOS UEFI AMI de 256 Mb con gestión WOL y PXE.
- 🧠 DDR5 hasta 192GB — 4 ranuras DIMM en Dual Channel (48GB máx por módulo) y velocidades de hasta 7600+ MHz (OC).
- 💾 Triple M.2 y SATA con RAID completo — 3 x M.2 Socket 3 M Key (2242/2260/2280), 4 puertos SATA 6Gb/s y RAID 0/1/5/10.
- 🌐 WiFi 6E y LAN 2.5G — WiFi 6E (802.11ax) con Bluetooth 5.3 y LAN RJ-45 de 2.5G (hasta 2500Mbps).
- 🎛️ Expansión PCIe 4.0 y 3.0 — 1 slot PCI Express 4.0 x16 más 2 slots PCI Express 3.0 x16 para gráficas y tarjetas de expansión.
| Característica | Detalles |
|---|---|
| Tipo de producto | Tarjeta Madre |
| Marca | ASUS |
| Modelo | PRMB840MAWFCSM |
| UPC | 197105797154 |
| Packaging | Retail |
| Chipset | AMD B840 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL | PXE |
| AMD CPU Support | Ryzen |
| Socket | AM5 |
| ECC | Non-ECC; Non-Registered |
| Tipo de memoria | DDR5-4800 | DDR5-5200 | DDR5-5400 | DDR5-5600 | DDR5-4400 | DDR5-5000 | DDR5-5800 |
| Memory Speeds Supported | 7600+(OC) |
| Memory Slots | 4 x 288pin DIMM |
| Memory Channel Support | Dual Channel |
| Max Memory Supported | 192GB |
| Maximum Memory Supported Per Slot | 48GB |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 | 2260 | 2280 |
| SATA Express | 3 x M.2 Socket 3 | M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 | RAID 1 | RAID 5 | RAID 10 |
| Audio Channels | 7.1 |
| WiFi Support | Onboard WiFi |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless Technology | 802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.3 | WiFi 6E (802.11ax) |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |

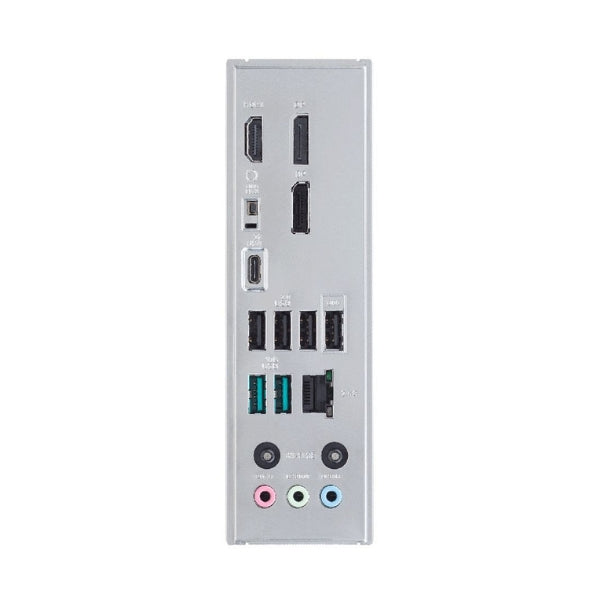

| Audio Ports | 1 x 3.5 mm Microphone | 1 x 3.5 mm Line-In | 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 2 x USB 3.2 (Gen 2 Type-A) | 1 x USB 3.2 (Gen 1 Type-C) |
| Video Connectors | 1 x HDMI 2.1 | 2 x DisplayPort 1.4 |
| Headers | 1 x Water Pump Header | 3 x System Fan Header | 2 x CPU Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) | 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| Other I/O | 3 x Addressable LED Headers |
| Power Connectors | 1 x 24-pin ATX Connector | 1 x 8-pin +12 V Connector |
| Conector ATX | 24-pin ATX Power Connector |
| Profundidad | 9.61 in. (244.00 mm) |
| Ancho | 9.61 in. (244.00 mm) |
| Factor de forma | microATX |
Tarjeta Madre ASUS B840M-A PRIME WIFI-CSM B840 Socket AMD AM5 DDR5 Micro-ATX
Precio de oferta$793.000,00 COP
Precio normal$975.000,00 COP
