Descripción:
| Característica | Detalle |
|---|---|
| Marca | Panasonic |
| Línea de producto | Panasonic |
| Modelo | AW-UE160 |
| Fabricante | Panasonic Industrial |
| Host Interface | USB |
| Network Interface | LAN |
| Protocols | ARP, DHCP, DNS, GARP, HTTP, HTTPS, ICMP, IPv4, IPv6, MDNS, MLD, NDI HX2, NTP, SNMP, TCP/IP, UDP/IP |
| Connectivity Technology | Wired |

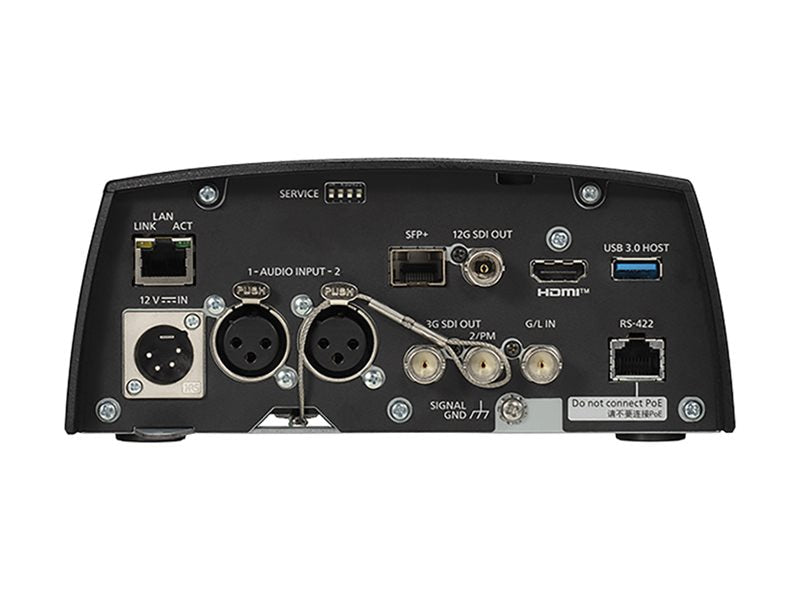

| Ports | 12G-SDI - BNC, 2 x 3G-SDI output - BNC, 2 x audio line in - 3 pin XLR, Fibre Channel - SFP+, G/L input - BNC, HDMI output, LAN/power - RJ-45, Serial RS-422 - RJ-45, USB 3.0 - 9 pin USB Type A |
| Image Sensor Size | 1" |
| Image Sensor Type | MOS |
| Tilt | -30 to +210 |
| Touchscreen | No |
| Audio Formats | AAC-LC |
| Audio Support | Yes |
| Camera Mechanical Design | Pan / tilt / zoom |
| Control Interface | RS-422A |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 3840 x 2160, 640 x 360 |
| Digital Zoom | 32 |
| Horizontal Resolution (TV Lines) | 1600 |
| Max Frame Rate | 120 frames per second |
| Max Panning Speed (degree/sec) | 180 |
| Max Tilting Speed (degree/sec) | 180 |
| Max Video Resolution | 3840 x 2160 |
| Panning Range (degree) | -175 to +175 |
| Recording Formats | JPEG |
| Shutter Speed (Max) | 1/2000 second (time unit) |
| Shutter Speed (Min) | 1/48 second (time unit) |
| Video Modes | 1080/100p, 1080/120p, 1080/23.98p, 1080/24p, 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60p, 2160/23.98p, 2160/24p, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 2160/60p, 720/50p, 720/59.9p |
| Video Signals | 12G-SDI, 3G-SDI, HDMI |
| Camera Mount Type | Ceiling mount, Surface mount |
| Camera Type | Conference camera |
| Night Vision | Yes |
| Low Voltage Power | DC 12 V / PoE Plus |
| Angular Field of View (D, Max, Degree) | 82.8 |
| Angular Field of View (D, Min, Degree) | 4.6 |
| Angular Field of View (H, Max, Degree) | 75.1 |
| Angular Field of View (H, Min, Degree) | 4 |
| Angular Field of View (V, Max, Degree) | 46.7 |
| Angular Field of View (V, Min, Degree) | 2.3 |
| Focal Length Control | Motorized zoom |
| Focus Modes | Automatic, Manual |
| Lens Aperture | F/2.8-4.5 |
| Max Focal Length | 176 millimetre |
| Temp. máx. de operación | 104 degree Fahrenheit |
| Min Focal Length | 8.8 millimetre |
| Min Focus Distance | 3.9 inch |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Humedad de operación | 20 - 90% (non-condensing) |
| Operating System Required | Android, Apple iOS, Apple macOS 10.13, Apple macOS 10.14, Apple macOS 10.15, Google Chrome OS, Windows 10 |
| Optical Zoom | 20 |
| Sensor Size (metric) | 15.86 mm (1") |
| Total Pixels | 9,620,000 pixels |
| Video Formats | H.264, H.265, MJPEG |
| Video Input | Color |
| Características | BT.2020 compatible, BT.709 compatible, Constant Bit Rate (CBR), Crop Zoom, Cropping function, FreeD protocol support, Gain Control, Gamma control, Image stabilizer, Multicast Streaming, Privacy mode, Tally light, Unicast Streaming, Variable Bit Rate (VBR), White balance |
| Cantidad por empaque | 1 |
| Alto | 10.9 inch |
| Weight | 10.14 lbs |
| Ancho | 8.4 inch |
| Profundidad | 9.4 inch |
| Color | Pearl white |
| Color | White |
| Estándares | IEEE 802.3bt |
