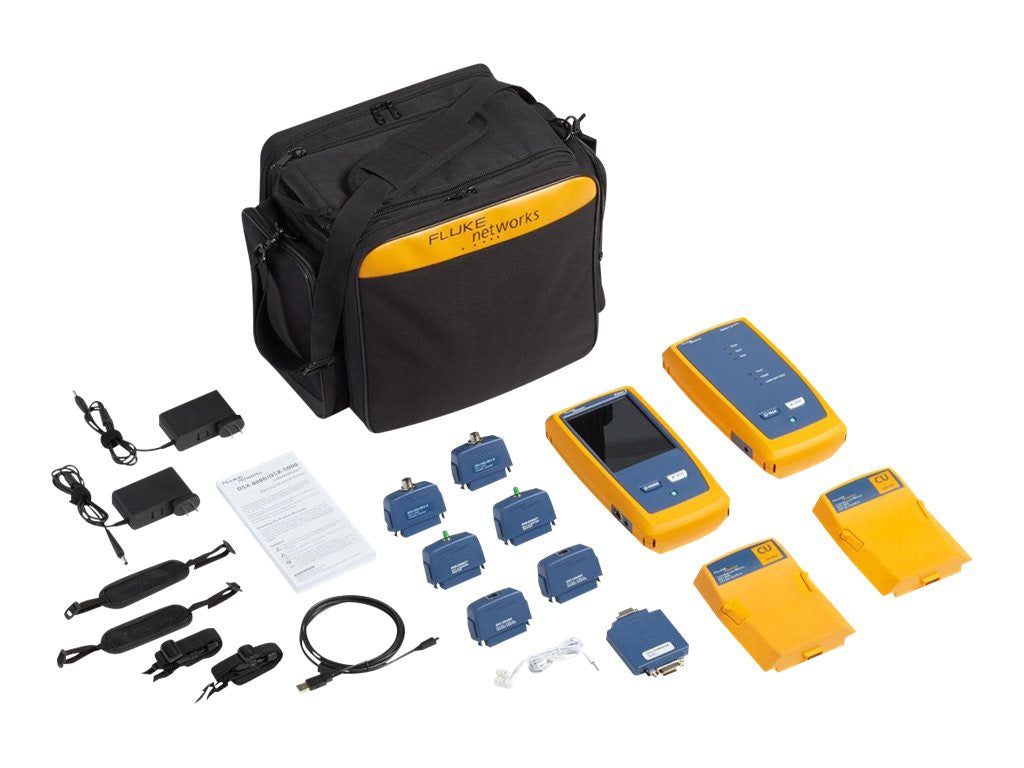

Probador de Red Fluke DSX CableAnalyzer DSX2-5-IE-K1
Promo Online 🔥
Descripción:
Sobre este producto
- 🌐 Probador de Red Fluke DSX CableAnalyzer DSX2-5-IE-K1: para administración y control de red.
- ✅ Certifies Copper Cable
- ✅ Supports RJ45,M12D,and M12X Connectors
- ✅ Shows Pass or Fail in 10 Seconds,with Full Measurement Details
| Característica | Detalle |
|---|---|
| Marca | Fluke |
| Línea de producto | Fluke DSX CableAnalyzer |
| Modelo | DSX2-5-IE-K1 |
| Fabricante | Fluke Networks |
| Cable Types | CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8 |
| Estándares | CSA 22.2 No. 61010, EN 61326-1, IEC 61010-1 3rd Edition |
| Características | 1-year calibration period, 1000MHz maximum frequency, 2-way autotest, Headset connection, USB connectivity, Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Kit Content | 2 x DSX-5000 CableAnalyzer Module, Versiv Mainframe, Versiv Remote |
| Media | Copper |
| Tipo de producto | Network tester kit |
| Software | LinkWare PC |
| Test Standards | TIA-568-C.2 |
| Tests, Tools and Measurements | Attenuation-to-crosstalk ratio far end, Common mode return loss (CMRL), DC loop resistance, Delay skew between pair, Equal level transverse conversion transfer loss (ELTCTL), Far end crosstalk (FEXT), Insertion loss (attenuation), Length, Near-end crosstalk, Pair resistance unbalance, Pair-to-pair resistance unbalance, Power sum, Propagation delay, Return loss, Transverse conversion loss (TCL), Wiremap |
| Connectors | RJ-45 |
| Color Support | Color |
| Display Diagonal Size | 5.7 inch |
| Display Diagonal Size (metric) | 14.5 centimetre |
| Display Screen | LCD |
| Battery Chemistry | Lithium ion |
| Battery Voltage | 7.2 volt |
| Battery Run Time (Up To) | 8 hour(s) |
| Drop Specification | 3.3 ft |
| Max Altitude Operating | 13120 ft |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 140 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | 14 degree Fahrenheit |
| Humedad de operación | 0 - 90% |
| Vibration Acceleration (Operating) | 2 gram |
| Vibration Frequency Range (Operating) | 5-500 Hz |
| Cantidad por empaque | 1 |
| Cables | 1 x USB cable |
| Accesorios incluidos | 2 x AC power adapters, 2 x hand straps, 2 x headsets, 2 x shoulder straps, Carrying case, CAT 6A/Class EA channel adapters set, M12D adapters set, M12X adapters set, Reference module |
Probador de Red Fluke DSX CableAnalyzer DSX2-5-IE-K1
Precio de oferta$20,015
Precio normal$24,018
