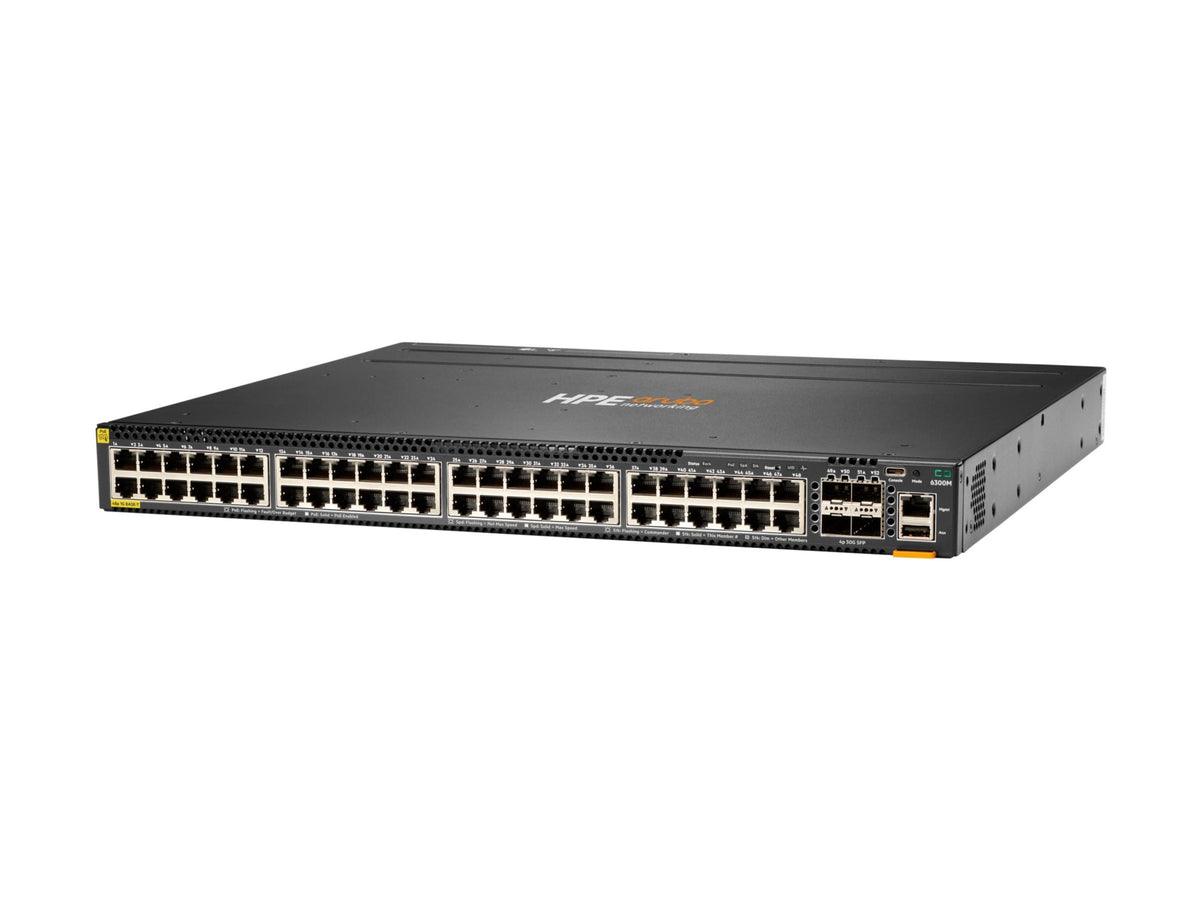

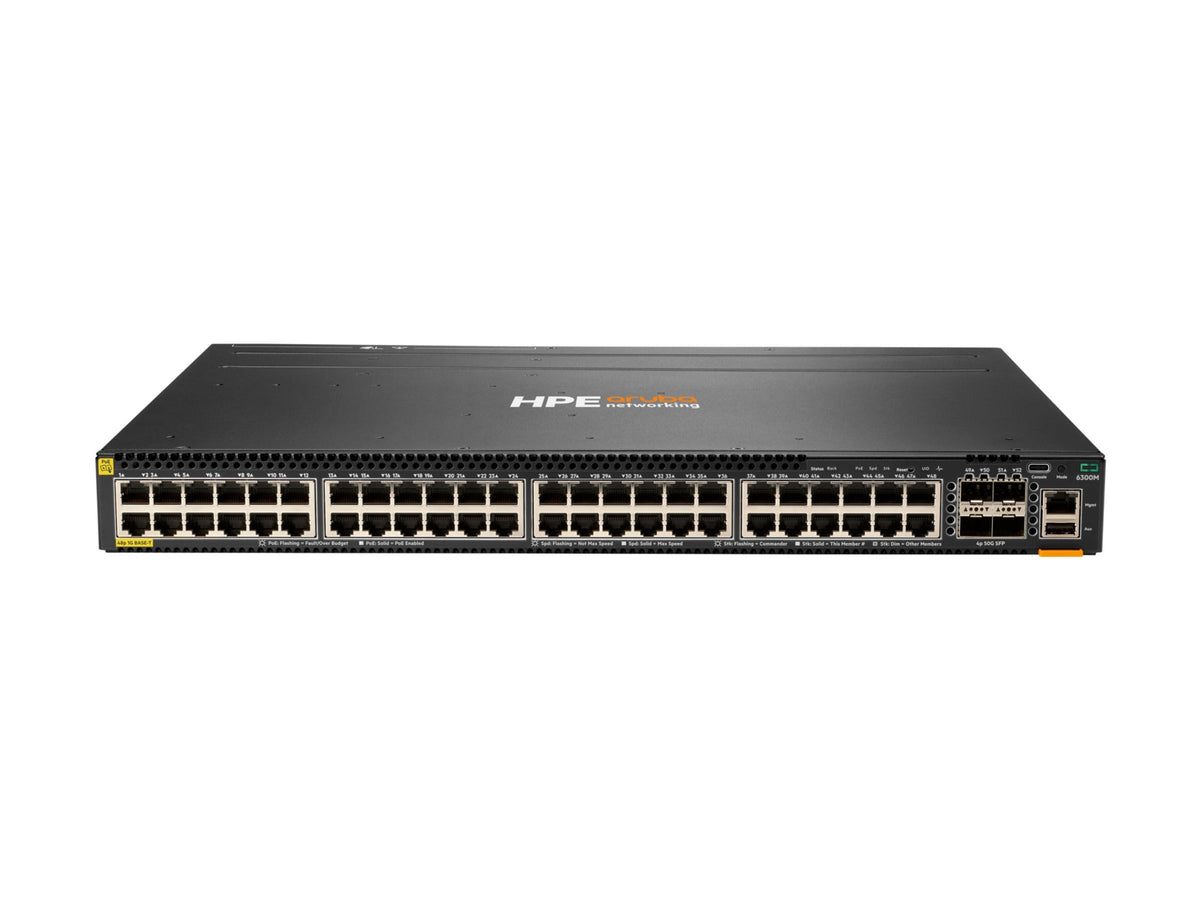

Switch de Red Aruba HPE Networking 6300M, JL661A
Promo Online 🔥
Descripción:
Sobre este producto
- 🔌 48 puertos 10/100/1000BASE-T PoE+: más 4 uplinks SFP 1/10/25/50G de alta velocidad.
- 🔗 Stacking VSF hasta 10 switches: Aruba Virtual Stacking Framework para escala y gestión unificada.
- ⚡ PoE alto 802.3bt: con HPE Smart Rate multi-gigabit para APs de alta velocidad e IoT.
- 📈 Throughput 369 Mpps: rendimiento non-blocking sobre ASIC Aruba Gen7.
- ⚙️ Procesador Quad Core ARM Cortex A72: con 32 GB eMMC y consumo de 88-96 W.
- ☁️ AOS-CX programable: con Network Analytics Engine para monitoreo y diagnóstico avanzado.
| Característica | Detalle |
|---|---|
| Marca | Aruba |
| Línea de producto | HPE Aruba |
| Modelo | 6300M |
| Fabricante | Aruba |
| Velocidad de reloj | 1.78 GHZ |
| Marca del procesador | ARM |
| Tipo de procesador | Cortex-A72 |
| Procesadores instalados | 1 |
| Flash Memory Installed | 32 GB |
| Tecnología de memoria | DDR4 SDRAM |
| RAM instalada | 8 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Características | Access Control List (ACL) support, ARP support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, High Availability, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, Jumbo Frames support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Strict Priority (SP), Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Manageable | Yes |
| PoE Budget | 1440 watt |
| Ports | 48 |
| Power Over Ethernet (PoE) | PoE+ |
| Tipo de producto | Switch |
| Gestión remota | CLI, HTTPS, RMON, SFTP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP, XRMON |
| Routing Protocol | BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, IGMP, IGMPv2, IGMPv3, MLD, MSDP, OSPFv2, OSPFv3, Static IPv6 routing, VRRP |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Interfaces | 1 x management, 1 x USB Type A, 1 x USB-C console, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56, 48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
| Port Quantity | 48 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Humedad de operación | 15 - 95% (non-condensing) |
| Airflow Direction | Front and side to back |
| Authentication Method | RADIUS, Secure Shell (SSH), TACACS+ |
| Capacity | IGMP groups: 8000, IPv4 ACL entries (egress): 2000, IPv4 ACL entries (ingress): 5000, IPv4 host table capacity: 32000, IPv4 routes (Multicast): 8000, IPv4 routes (Unicast): 64000, IPv6 ACL entries (egress): 500, IPv6 ACL entries (ingress): 1250, IPv6 host table capacity: 32000, IPv6 routes (Multicast): 8000, IPv6 routes (Unicast): 32000, MAC ACL entries (egress): 2000, MAC ACL entries (ingress): 5000, MLD groups: 4000, Switched virtual interfaces (SVIs): 1000 |
| Cantidad por empaque | 1 |
| Performance | Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Latency (25 Gbps): 1.9 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 496 Gbps, Throughput: 369 Mpps |
| Ports (2nd) Quantity | 4 |
| Rack Mounting Kit | Included |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 12.61 lbs |
| Ancho | 17.4 inch |
| Profundidad | 15.2 inch |
| Color | Black |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
Switch de Red Aruba HPE Networking 6300M, JL661A
Precio de oferta$17,343
Precio normal$21,506
