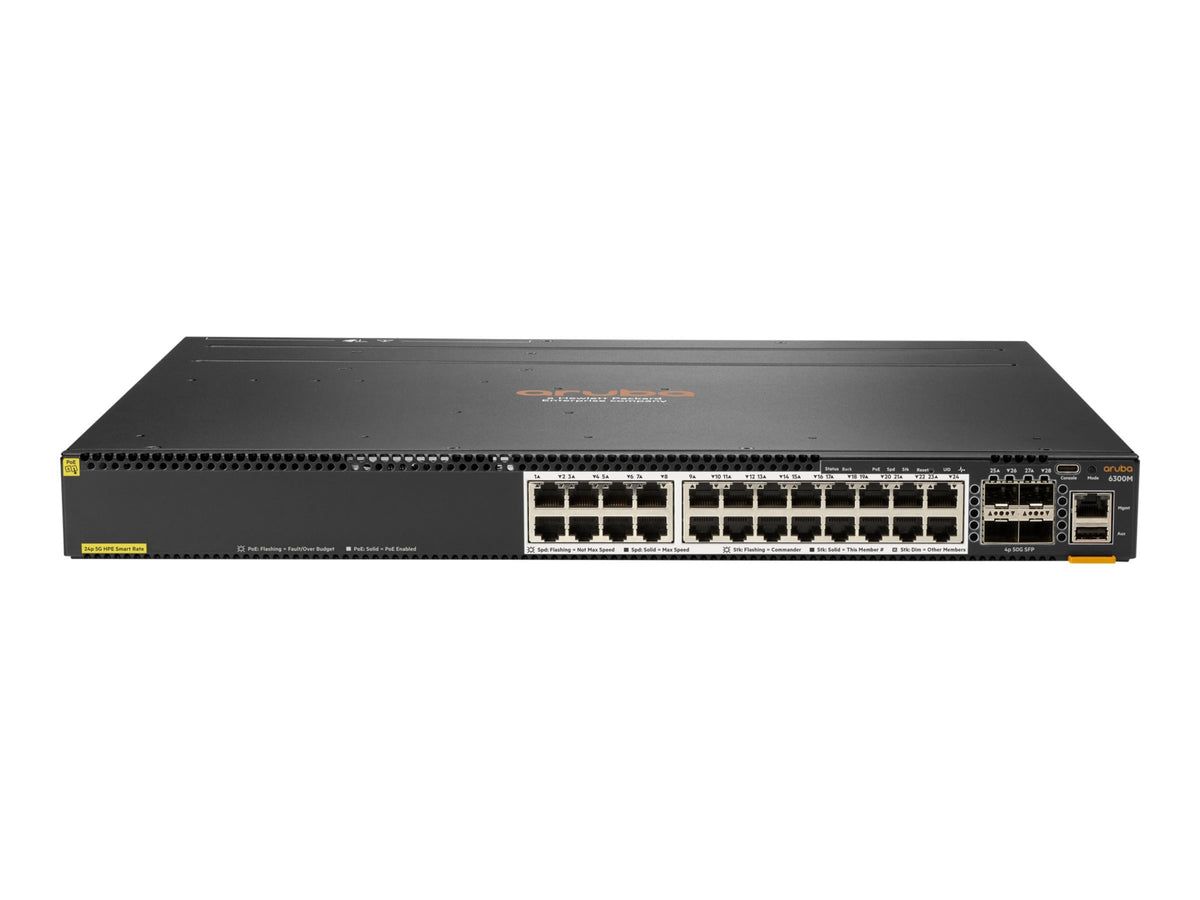

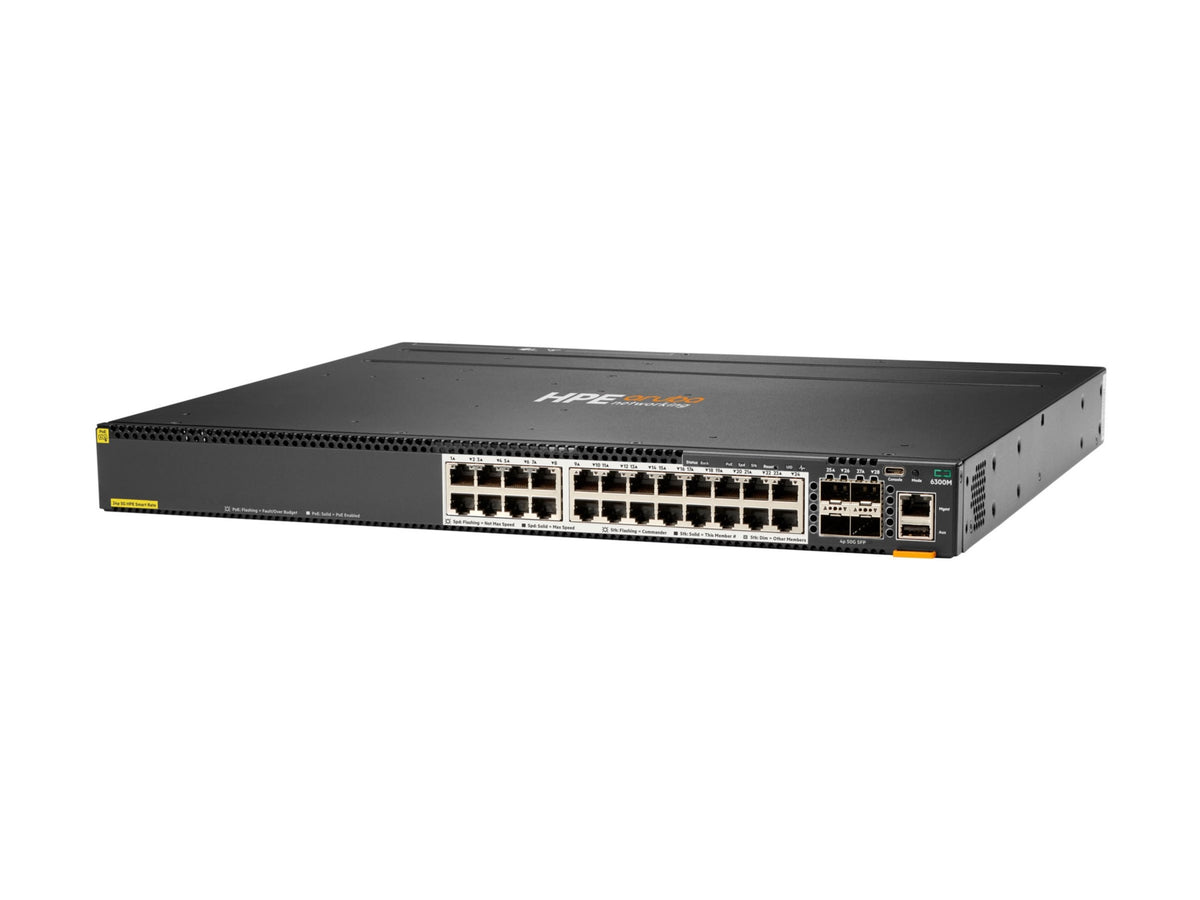

Switch de Red Aruba HPE Networking 6300M, JL660A
Promo Online 🔥
Descripción:
Sobre este producto
- 🛠️ Administrable y Layer 3 (L3): serie HPE Aruba Networking CX 6300 con AOS-CX, ideal para acceso, agregación y top-of-rack (TOR) en data center.
- ⚡ 24 puertos 100/1000/2.5G/5GBase-T PoE+ + 4 x SFP56 hasta 50 Gigabit: multigigabit con enlaces de subida y stacking.
- 🔌 PoE+ de 1440 W: alta densidad de energía IEEE 802.3bt para APs de alta velocidad e IoT.
- 🔗 HPE Virtual Stacking Framework (VSF): apila hasta 10 switches para escalar y simplificar la gestión.
- 🧠 HPE Aruba Gen7 ASIC: rendimiento rápido y non-blocking con OS programable.
- 🗄️ Montable en rack: con HPE Smart Rate multigigabit Ethernet.
| Característica | Detalle |
|---|---|
| Marca | Aruba |
| Línea de producto | HPE Aruba |
| Modelo | 6300M |
| Fabricante | Aruba |
| Velocidad de reloj | 1.78 GHZ |
| Marca del procesador | ARM |
| Tipo de procesador | Cortex-A72 |
| Procesadores instalados | 1 |
| Flash Memory Installed | 32 GB |
| Tecnología de memoria | DDR4 SDRAM |
| RAM instalada | 8 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz |
| Características | Access Control List (ACL) support, ARP support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, High Availability, HPE SmartRate, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, Jumbo Frames support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Strict Priority (SP), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Manageable | Yes |
| PoE Budget | 1440 watt |
| Ports | 24 |
| Power Over Ethernet (PoE) | PoE+ |
| Tipo de producto | Switch |
| Gestión remota | CLI, HTTPS, RMON, SFTP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP, XRMON |
| Routing Protocol | BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, IGMP, IGMPv2, IGMPv3, MLD, MSDP, OSPFv2, OSPFv3, Static IPv6 routing, VRRP |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Interfaces | 1 x management, 1 x USB Type A, 1 x USB-C console, 24 x 100/1000/2.5G/5GBase-T RJ-45 PoE+ - 60 W, 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 |
| Port Quantity | 24 |
| Port Type | 100/1000/2.5G/5GBase-T (PoE+) |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Humedad de operación | 15 - 95% (non-condensing) |
| Airflow Direction | Front and side to back |
| Authentication Method | RADIUS, TACACS+ |
| Capacity | IGMP groups: 8000, IPv4 ACL entries (egress): 2000, IPv4 ACL entries (ingress): 5000, IPv4 host table capacity: 32000, IPv4 routes (Multicast): 8000, IPv4 routes (Unicast): 64000, IPv6 ACL entries (egress): 500, IPv6 ACL entries (ingress): 1250, IPv6 host table capacity: 32000, IPv6 routes (Multicast): 8000, IPv6 routes (Unicast): 32000, MAC ACL entries (egress): 2000, MAC ACL entries (ingress): 5000, MLD groups: 4000, Switched virtual interfaces (SVIs): 1000 |
| Cantidad por empaque | 1 |
| Performance | Latency (1 Gbps): 4.24 µs, Latency (10 Gbps): 1.5 µs, Latency (25 Gbps): 2.91 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 640 Gbps, Throughput: 476 Mpps |
| Ports (2nd) Quantity | 4 |
| Rack Mounting Kit | Included |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 13.36 lbs |
| Ancho | 17.4 inch |
| Profundidad | 15.2 inch |
| Color | Black |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
Switch de Red Aruba HPE Networking 6300M, JL660A
Precio de oferta$8,838
Precio normal$10,959
