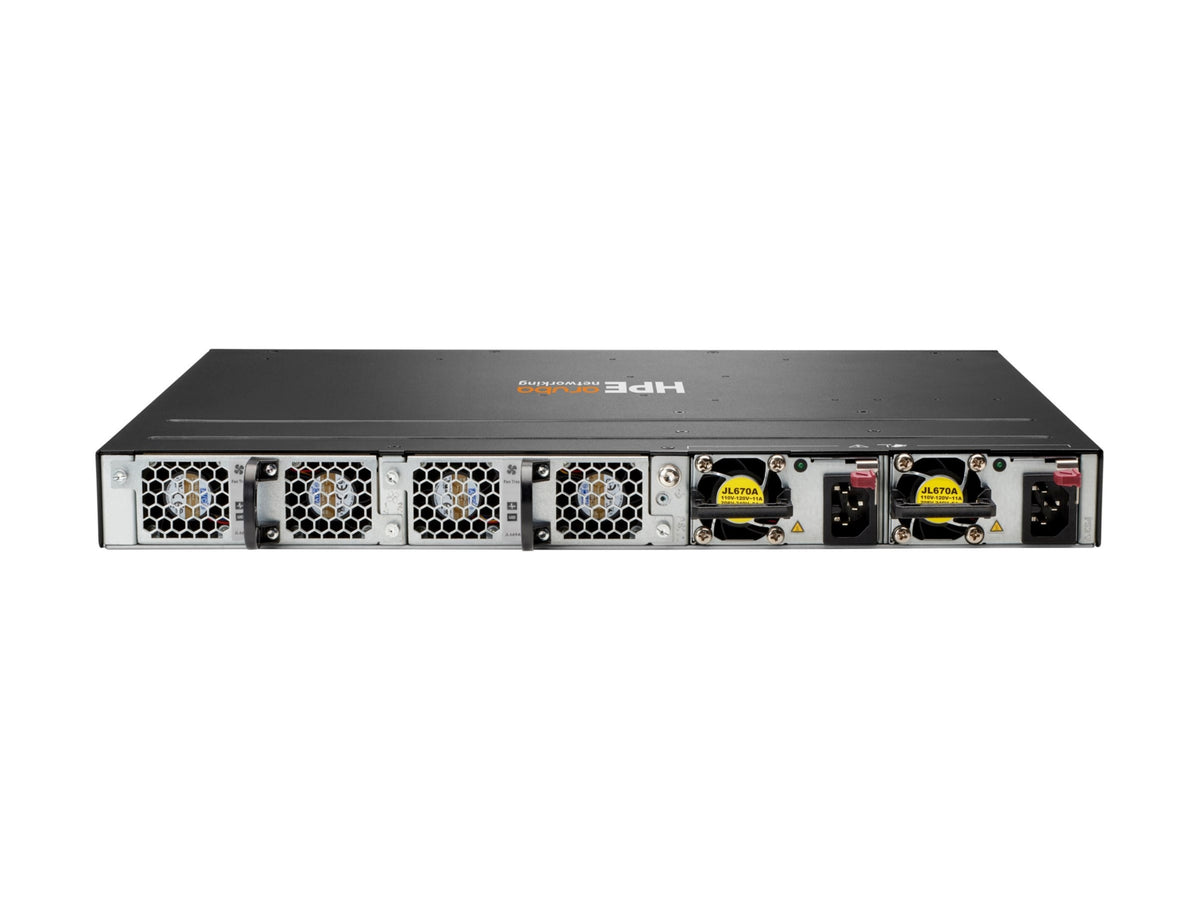

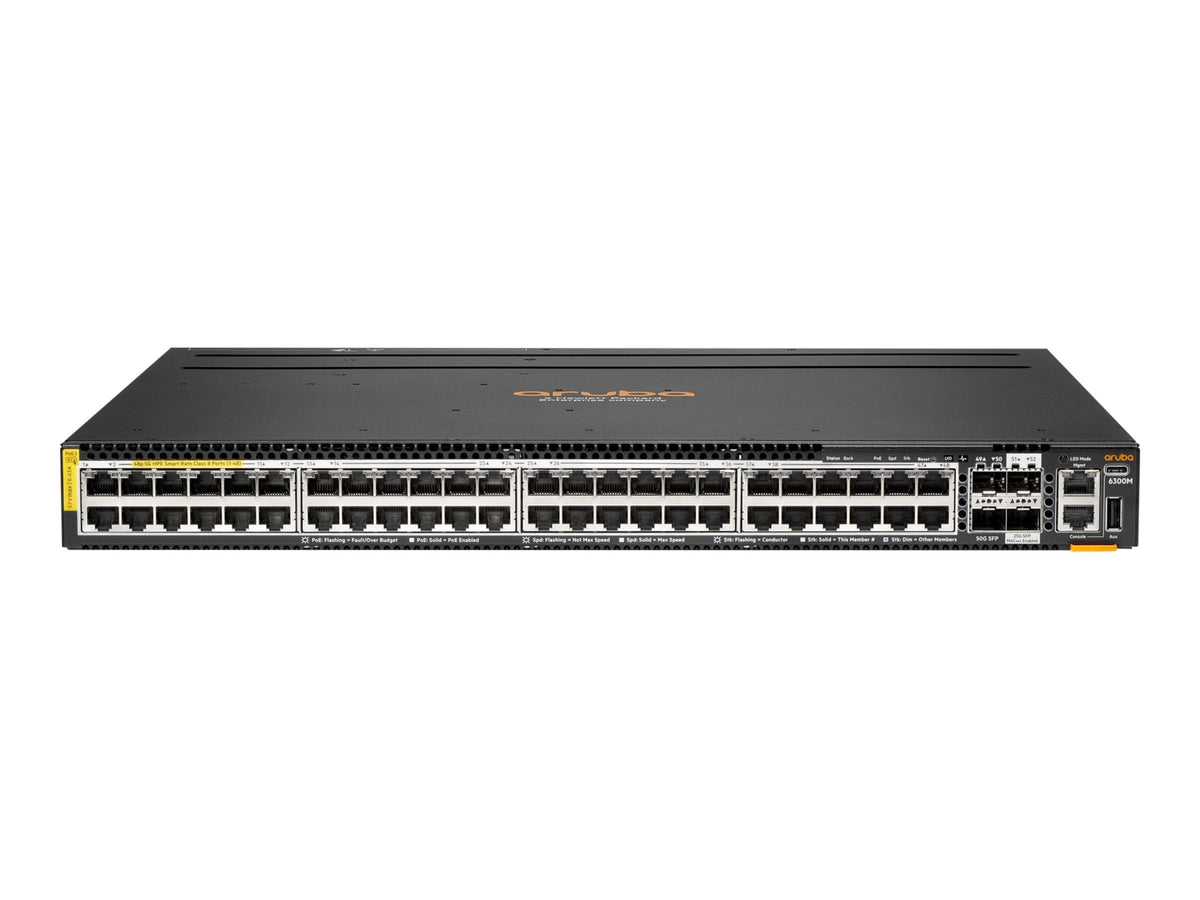

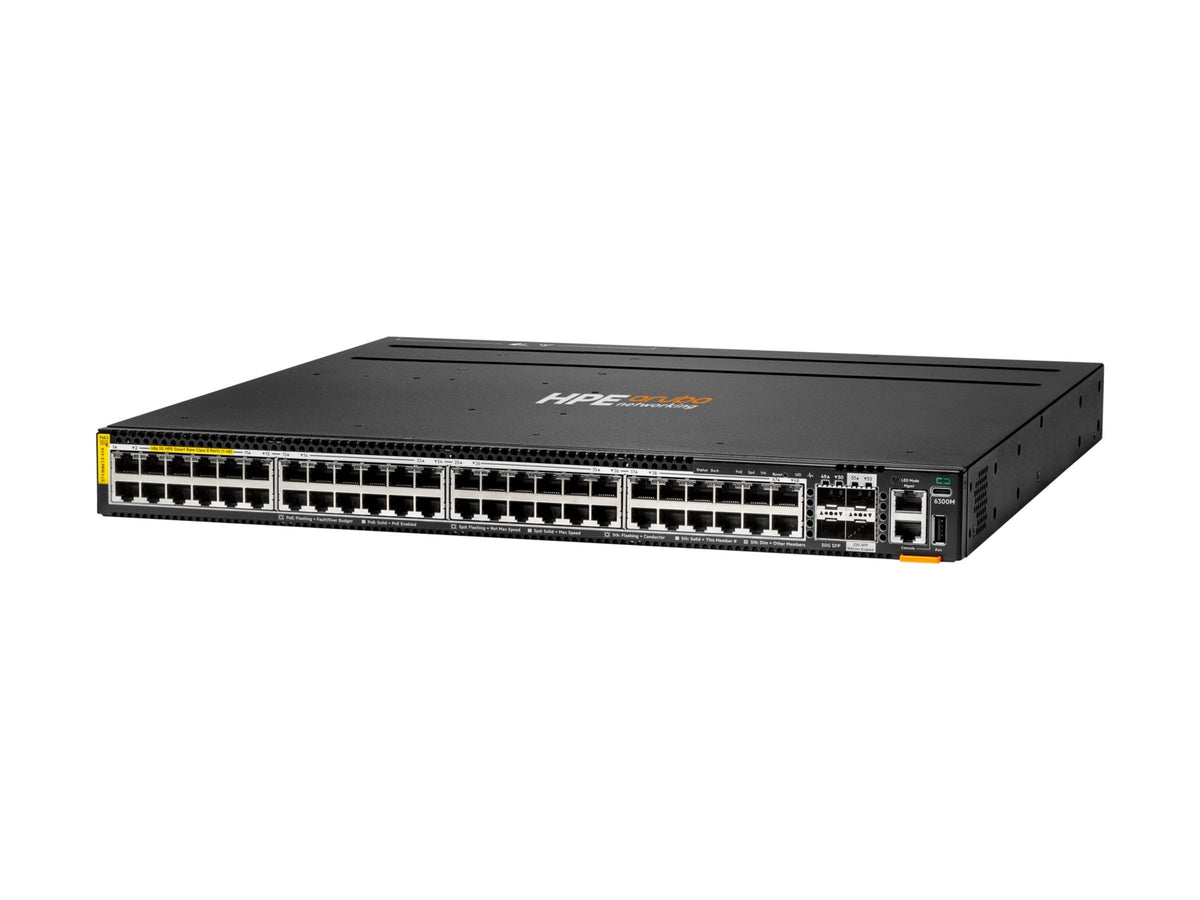

Switch de Red Aruba HPE Networking 6300M, R8S90A
Promo Online 🔥
Descripción:
Sobre este producto
- 🔌 48 puertos 100/1000/2.5G/5G (PoE++) más uplinks SFP (1/10/25 y 10/25/50 Gigabit) para uplink/stacking
- 🔀 Switch Layer 3 gestionado ideal para acceso, agregación y top-of-rack (TOR) de centro de datos
- 🧠 Diseño cloud-céntrico con OS programable AOS-CX y Analytics Engine para monitoreo líder en el sector
- 📚 HPE Virtual Stacking Framework (VSF) permite apilar hasta 10 switches para escalar y simplificar la gestión
- 🔋 PoE++ IEEE 802.3bt de alta densidad con HPE Smart Rate multi-gigabit para APs de alta velocidad y dispositivos IoT
- 🌬️ Formato rack-mountable con flujo de aire front-and-side to back
| Característica | Detalle |
|---|---|
| Marca | Aruba |
| Línea de producto | HPE Aruba |
| Modelo | 6300M |
| Fabricante | Aruba |
| Velocidad de reloj | 1.8 GHZ |
| Marca del procesador | ARM |
| Procesadores instalados | 1 |
| Flash Memory Installed | 32 GB |
| Tecnología de memoria | DDR4 SDRAM |
| RAM instalada | 8 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Características | Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bootstrap Router (BSR) Mechanism, Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, Dual firmware images, Dynamic IPv6 lockdown, Fan tray, High Availability, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, LLDP support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32768 entries |
| Manageable | Yes |
| Ports | 48 |
| Power Over Ethernet (PoE) | PoE++ |
| Tipo de producto | Switch |
| Gestión remota | CLI, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Routing Protocol | BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, Policy-based routing (PBR), RSTP, STP, VRRP |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| QSFP Slots | 10 Gigabit / 25 Gigabit / 50 Gigabit SFP (uplink / stacking) |
| Interfaces | 1 x console RJ-45, 1 x USB Type A host, 1 x USB-C console, 2 x 1/10/25Gbit LAN SFP, 2 x 10/25/50Gbit LAN SFP, 48 x 100/1000/2.5G/5G (PoE++) RJ-45 |
| Port Quantity | 48 |
| Port Type | 100/1000/2.5G/5G (PoE++) |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit / 25 Gigabit SFP |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Fuentes instaladas | 1 |
| Fuentes soportadas | 2 |
| Fuente redundante | Optional |
| Fuente redundante soportada | 1+1 (with optional power supply) |
| Encryption | FIPS 140-2 |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Humedad de operación | 15 - 95% (non-condensing) |
| Airflow Direction | Front and side to back |
| Authentication Method | RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+ |
| Capacity | IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024 |
| Device Type | Internal power supply |
| Cantidad por empaque | 1 |
| Performance | Latency (1 Gbps): 4.24 µs, Latency (10 Gbps): 1.5 µs, Latency (25 Gbps): 2.91 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 880 Gbps, Throughput: 654 Mpps |
| Ports (2nd) Quantity | 2 |
| Ports (3rd) Quantity | 2 |
| Rack Mounting Kit | Included |
| Accesorios incluidos | Rack kit (2 post) |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 12.08 lbs |
| Ancho | 17.4 inch |
| Profundidad | 15.2 inch |
| Color | Black, Silver |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
Switch de Red Aruba HPE Networking 6300M, R8S90A
Precio de oferta$25,702
Precio normal$31,870
