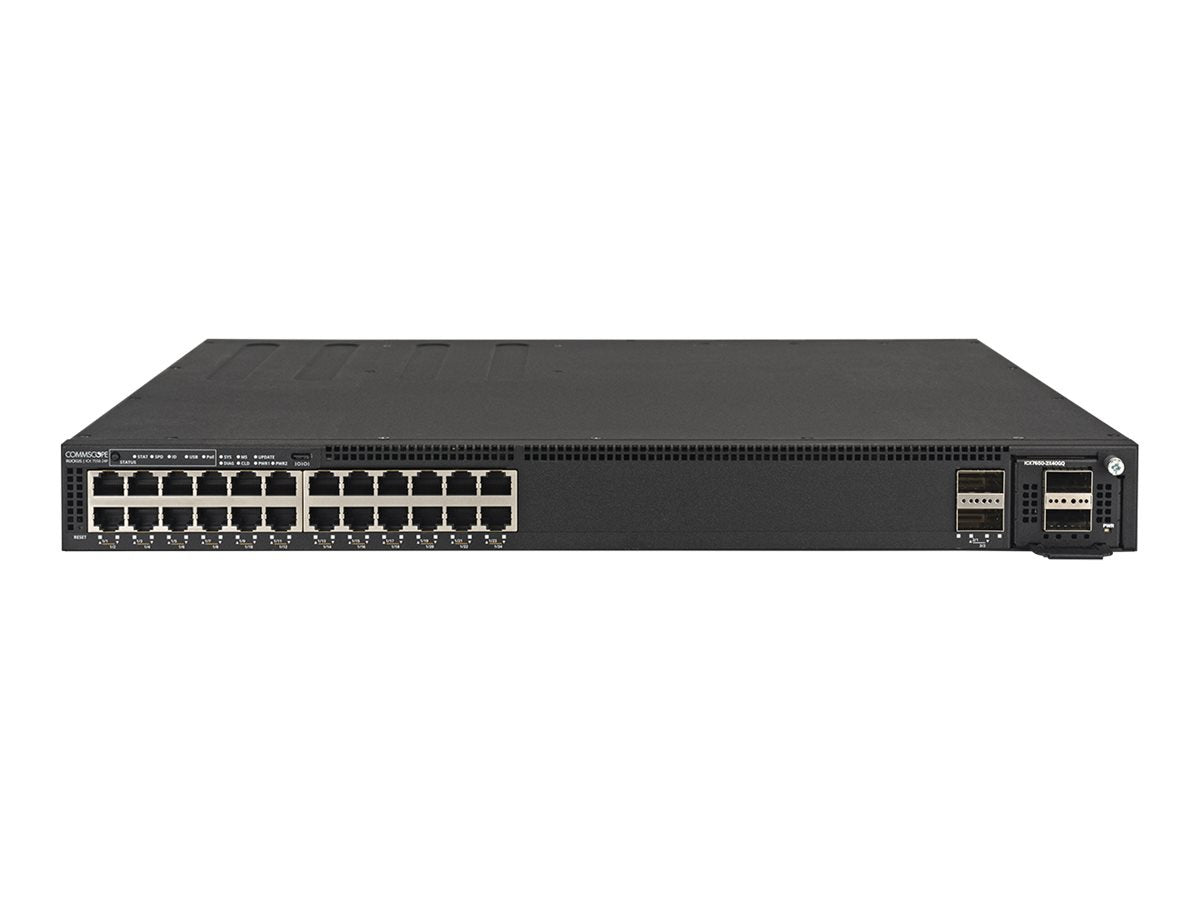

Switch de Red Ruckus ICX 7550-24P
Promo Online 🔥
Descripción:
Sobre este producto
- 🔌 24 puertos PoE+ más 2 QSFP+ de 40 Gigabit (uplink/apilamiento)
- ⚡ Presupuesto PoE+ de 2000 W, hasta 90 W por puerto (802.3bt)
- 🧭 Switch Capa 3 administrado, montable en rack
- 📶 Diseñado para despliegues Wi-Fi 6 y multigigabit
- 🔗 Apilamiento de hasta 12 switches (576 puertos) con uplinks 100 GbE
| Característica | Detalle |
|---|---|
| Marca | Ruckus |
| Línea de producto | Ruckus ICX |
| Modelo | 7550-24P |
| Fabricante | Ruckus Wireless |
| Flash Memory Installed | 4 GB |
| RAM instalada | 4 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Características | 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 12288 bytes |
| Manageable | Yes |
| Max Units In A Stack | 12 |
| PoE Budget | 2000 watt |
| Ports | 24 |
| Power Over Ethernet (PoE) | PoE+ |
| Tipo de producto | Switch |
| Gestión remota | CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP |
| Routing Protocol | BGP for IPv6, BGP-4, BGP-4+, ECMP, GRE, MSDP, OSPF for IPv6, OSPFv2, OSPFv3, Policy-based routing (PBR), RIP-1, RIPng, Static IPv4 routing, Static IPv6 routing, VRRPE, VRRPv3 |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 2 x 40Gbit LAN QSFP+ uplink/stacking, 24 x 1000Base-T RJ-45 PoE+ |
| Port Quantity | 24 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | 40 Gigabit QSFP+ (uplink/stacking) |
| Hot-Plug | Hot-plug |
| Fuentes soportadas | 2 |
| Fuente redundante | Yes |
| Fuente redundante soportada | 1+1 (with optional power supply) |
| Encryption | AES |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | 319,662 Hours |
| Humedad de operación | 10 - 90% (non-condensing) |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+ |
| Capacity | Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128 |
| Device Type | Internal power supply (not installed) |
| Cantidad por empaque | 1 |
| Performance | Aggregate stacking bandwidth: 960 Gbps, Forwarding capacity: 274 Mpps, Switching capacity: 368 Gbps |
| Ports (2nd) Quantity | 2 |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 14.86 lbs |
| Ancho | 17.3 inch |
| Profundidad | 16 inch |
| Color | Black |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
Switch de Red Ruckus ICX 7550-24P
Precio de oferta$8,954
Precio normal$11,013
