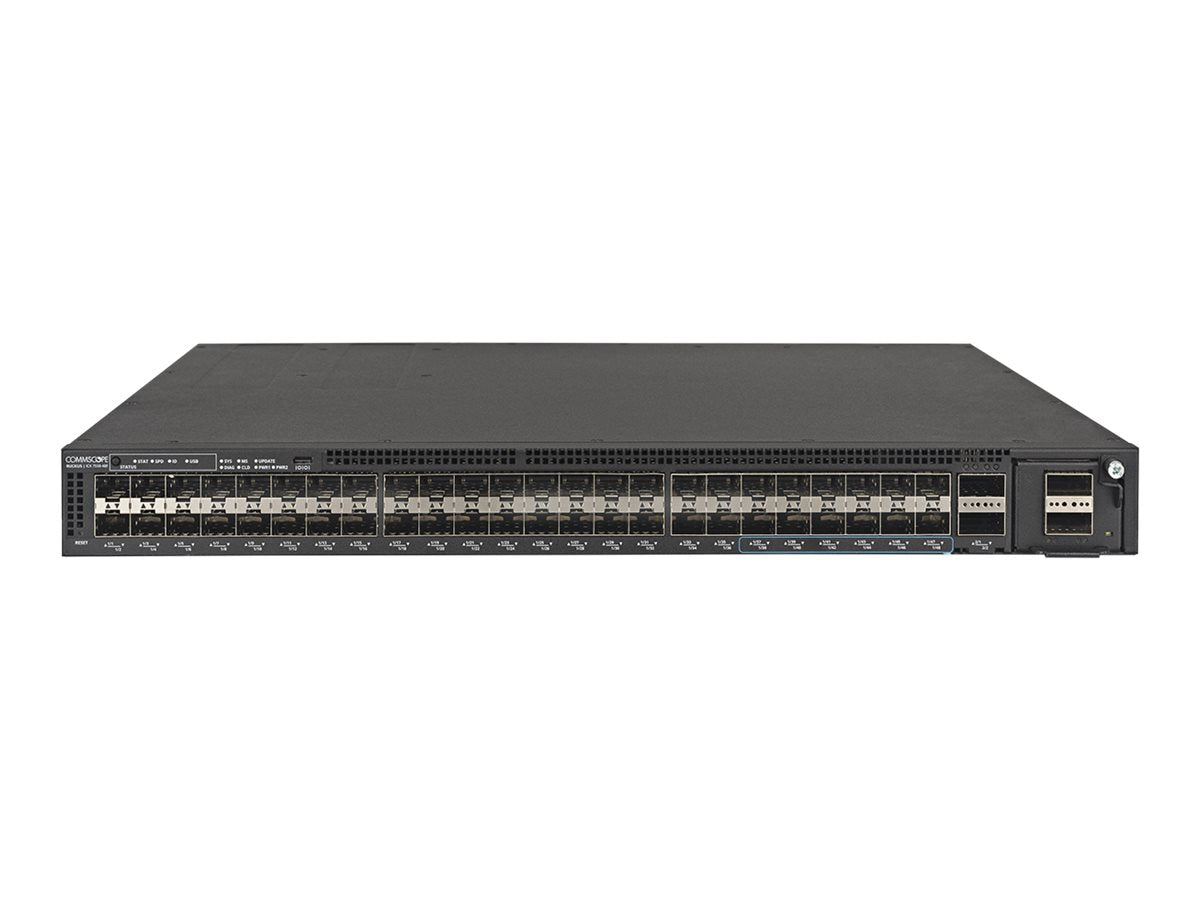

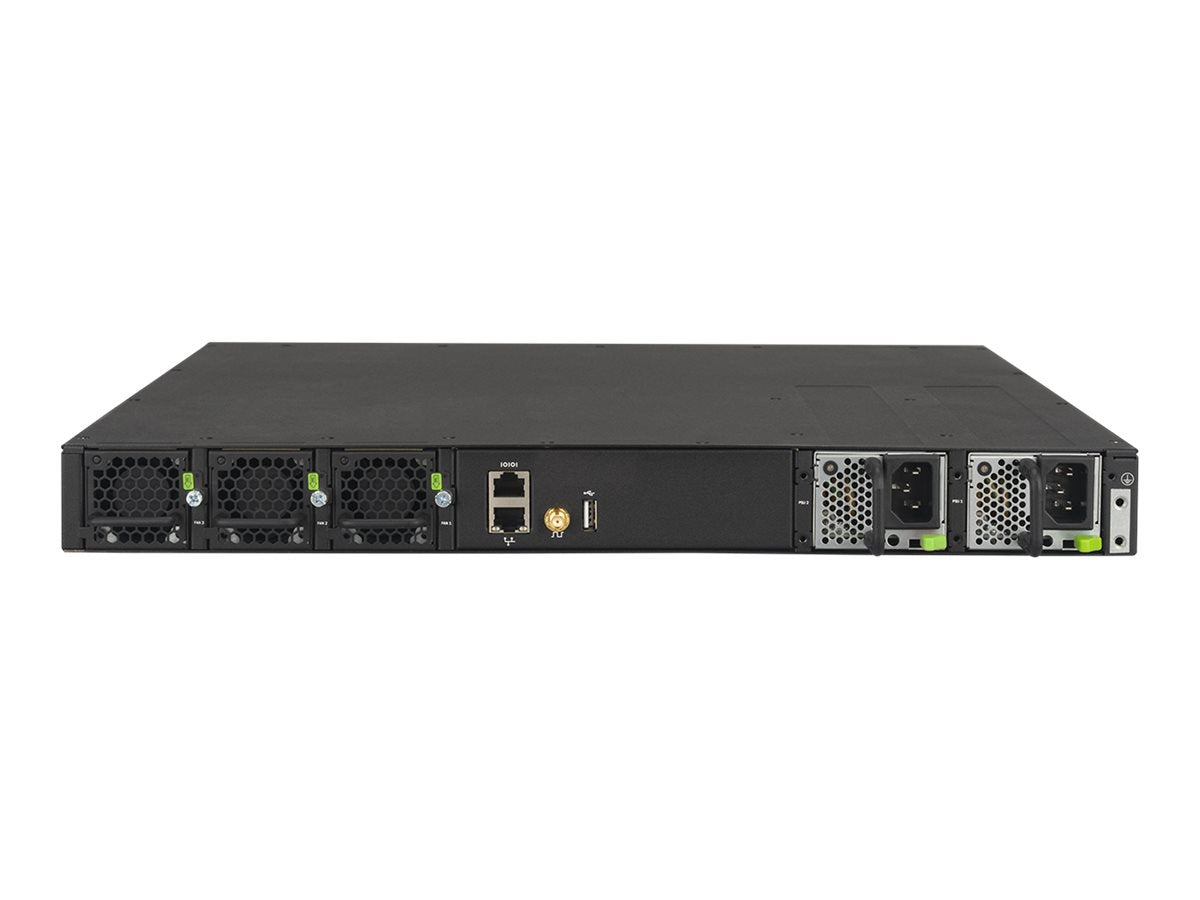

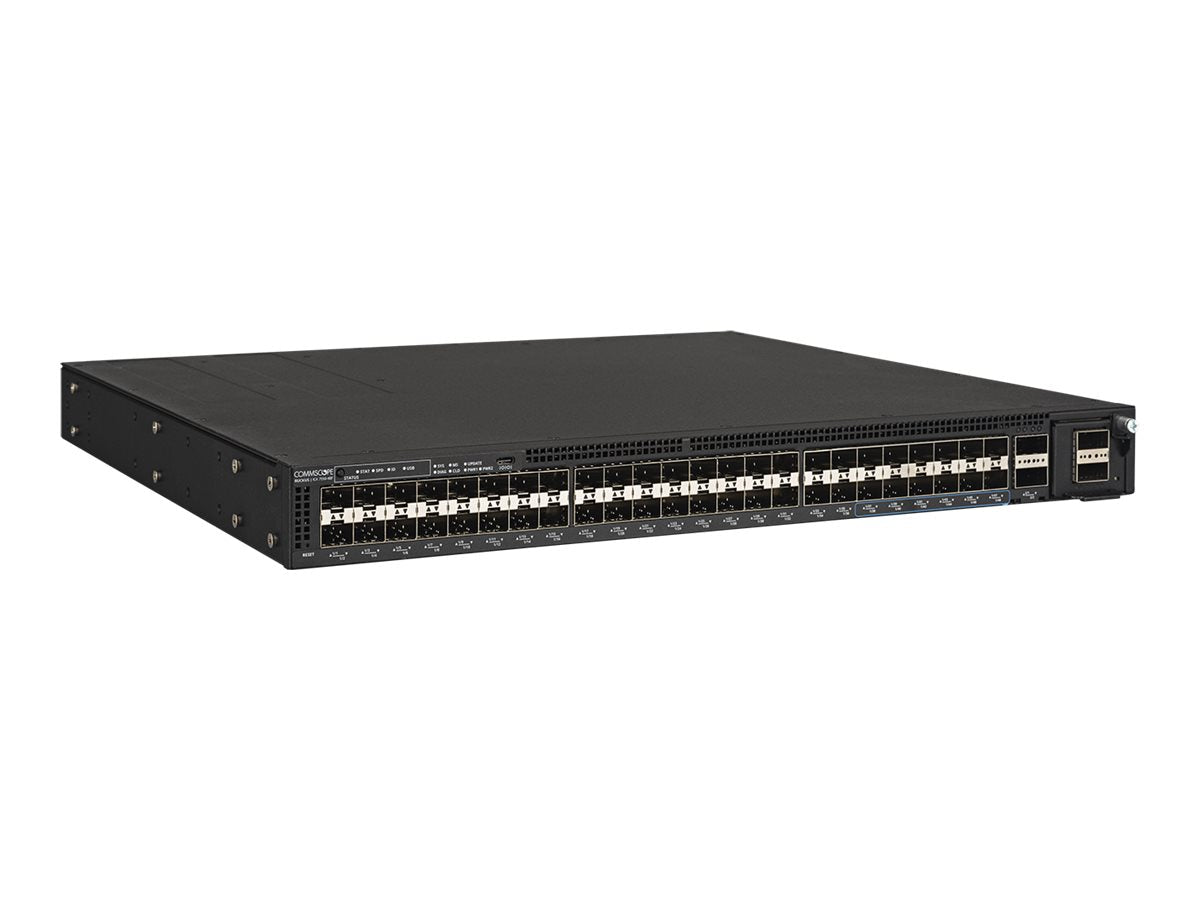

Switch de Red Ruckus ICX 7550-48F
Promo Online 🔥
Descripción:
Sobre este producto
- 🌐 Switch de Red Ruckus ICX 7550-48F: para redes cableadas de oficina y datacenter.
- ✅ The CommScope Ruckus ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond
- ✅ It offers incredible stacking density and combines chassis-level performance with "pay as you grow" scalability of a stackable solution
| Característica | Detalle |
|---|---|
| Marca | Ruckus |
| Línea de producto | Ruckus ICX |
| Modelo | 7550-48F |
| Fabricante | Ruckus Wireless |
| Flash Memory Installed | 4 GB |
| RAM instalada | 4 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Características | 3 fans, 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 12288 bytes |
| Manageable | Yes |
| Max Units In A Stack | 12 |
| Ports | 48 |
| Tipo de producto | Switch |
| Gestión remota | CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP |
| Routing Protocol | ECMP, RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| QSFP Slots | 40/100 Gigabit QSFP28 (uplink) |
| Interfaces | 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 12 x 1/10GBase-X SFP+, 2 x 100Gbit/40Gbit LAN QSFP28 uplink/stacking, 36 x 100 / 1000Base-X SFP |
| Port Quantity | 36 |
| Port Type | Gigabit SFP |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit SFP+ |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 166.8 watt |
| Potencia | 400 watt |
| Fuentes instaladas | 2 |
| Fuentes soportadas | 2 |
| Fuente redundante | Yes |
| Fuente redundante soportada | 1+1 |
| Encryption | AES |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | 532,359 Hours |
| Humedad de operación | 10 - 90% (non-condensing) |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+ |
| Capacity | Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128 |
| Device Type | Internal power supply |
| Cantidad por empaque | 1 |
| Performance | Aggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 678 Mpps, Switching capacity: 912 Gbps |
| Ports (2nd) Quantity | 12 |
| Ports (3rd) Quantity | 2 |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 14.15 lbs |
| Ancho | 17.3 inch |
| Profundidad | 16 inch |
| Color | Black |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
Switch de Red Ruckus ICX 7550-48F
Precio de oferta$18,689
Precio normal$23,735
