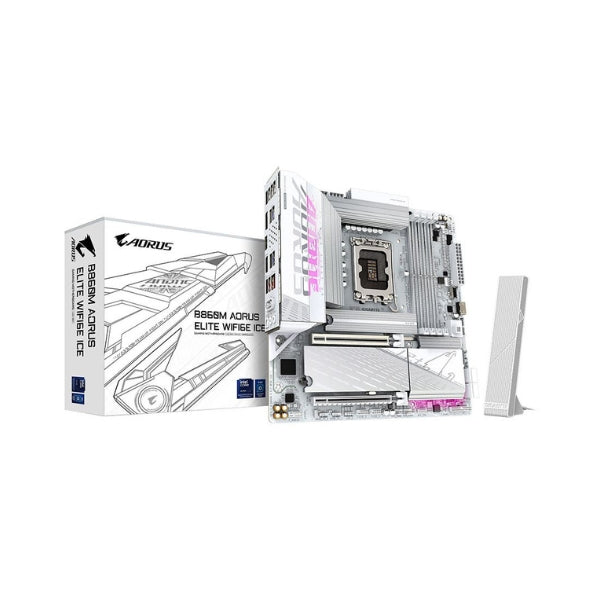

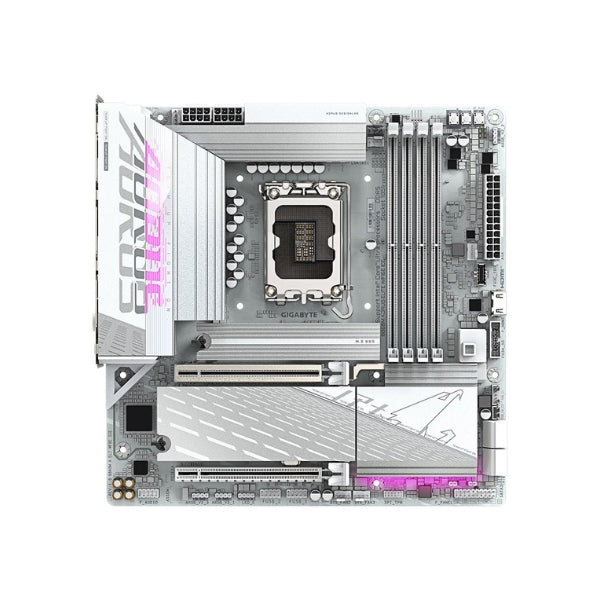

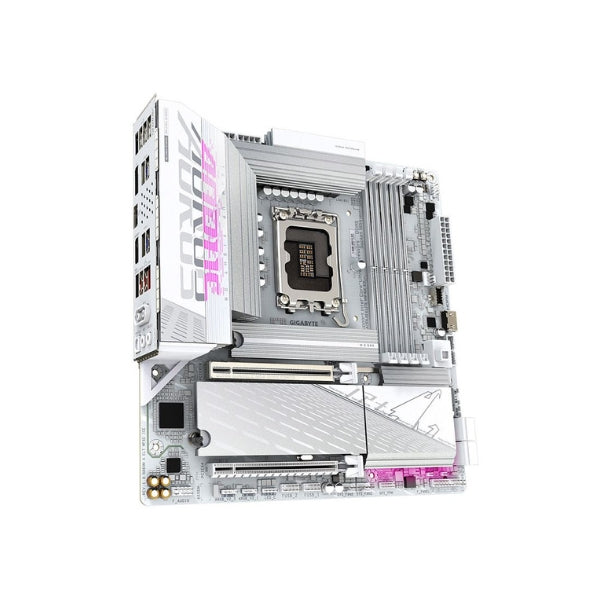

Tarjeta Madre Gigabyte B860M AORUS ELITE WIFI6E ICE Intel LGA 1851 microATX
Promo Online 🔥
Descripción:
Sobre este producto
- ❄️ Formato Micro-ATX blanco con EZ-Latch: estética ICE y montaje simplificado de componentes, un equilibrio entre tamaño compacto y expansión frente al Mini-ITX.
- ⚙️ Chipset B860 + socket LGA 1851: admite procesadores Intel Core Ultra (Serie 2) con BIOS UEFI AMI de 256 Mb Flash ROM.
- 🧠 DDR5 Dual Channel hasta 256GB: 4 ranuras 288-pin DIMM (64GB por módulo) con DDR5-5600/6400 y perfiles overclock hasta 9200 MHz (O.C.).
- 💾 Almacenamiento amplio: 3 puertos M.2 (2280/22110/25110/2580 M Key), 4 conectores SATA 6Gb/s con RAID 0/1/5/10 y 1 slot PCIe 5.0 x16.
- 📶 Conectividad Intel Wi-Fi 6E AX211: WiFi 6E integrado con Bluetooth 5.3 y LAN Realtek 2.5Gb Ethernet (hasta 2500 Mbps).
- 🔊 Audio Realtek 7.1 canales: sonido envolvente de alta definición para una experiencia multimedia y de juego inmersiva.
| Característica | Detalles |
|---|---|
| Tipo de producto | Tarjeta Madre |
| Marca | Gigabyte |
| Modelo | B860MAELTWF6EIC |
| UPC | 889523046548 |
| Packaging | Retail |
| Chipset | Intel B860 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Intel CPU Support | Core Ultra Processors |
| Socket | LGA 1851 |
| ECC | Non-ECC; Non-Registered | ECC; Non-Registered |
| Tipo de memoria | DDR5-5600 | DDR5-6400 |
| Memory Speeds Supported | 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MHz |
| Memory Slots | 4 x 288pin DIMM |
| Memory Channel Support | Dual Channel |
| Max Memory Supported | 256GB |
| Maximum Memory Supported Per Slot | 64GB |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2280 | 22110 | 25110 | 2580 |
| SATA Express | 3 x M.2 Socket 3 | M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 | RAID 1 | RAID 5 | RAID 10 |
| Audio Chipset | Realtek |
| Audio Channels | 7.1 |
| WiFi Support | Onboard WiFi |
| LAN Chipset | Realtek 2.5Gb Ethernet |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN Chipset | Intel Wi-Fi 6E AX211 |
| Wireless Technology | 802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.3 | WiFi 6E (802.11ax) |
| PCI Express 4.0 x16 | 1 |
| PCI Express 5.0 x16 | 1 |

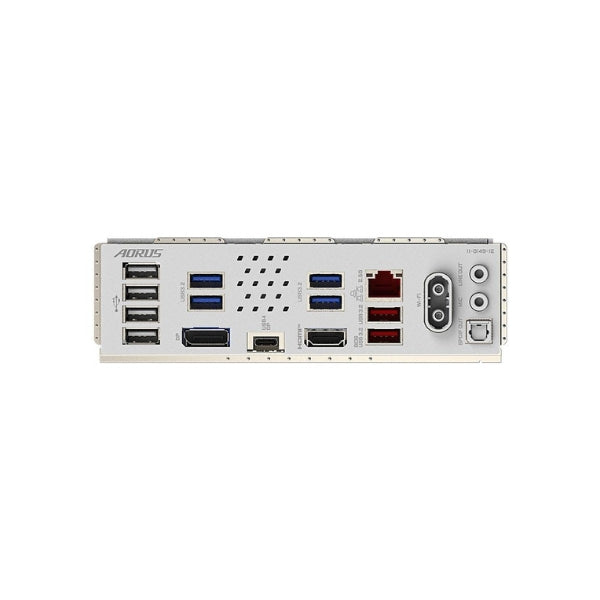

| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone | 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) | 2 x USB 3.2 (Gen 2 Type-A) | 1 x USB4 (Type-C 40 Gb/s) |
| Video Connectors | 1 x HDMI 1.4 | 1 x HDMI 2.1 | 1 x DisplayPort 2.1 |
| Digital Audio | 1 x Optical |
| Headers | 1 x CPU Fan Header | 1 x Water Pump Header | 3 x System Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) | 1 x USB 3.2 Gen 2 Type-C Header (1 Port) |
| Other I/O | 3 x Addressable LED Headers |
| Power Connectors | 1 x 24-pin ATX Connector | 2 x 8-pin +12 V Connector |
| Conector ATX | 24-pin ATX Power Connector |
| Profundidad | 9.61 in. (244.00 mm) |
| Ancho | 9.61 in. (244.00 mm) |
| Factor de forma | microATX |
Tarjeta Madre Gigabyte B860M AORUS ELITE WIFI6E ICE Intel LGA 1851 microATX
Precio de oferta$248
Precio normal$298
