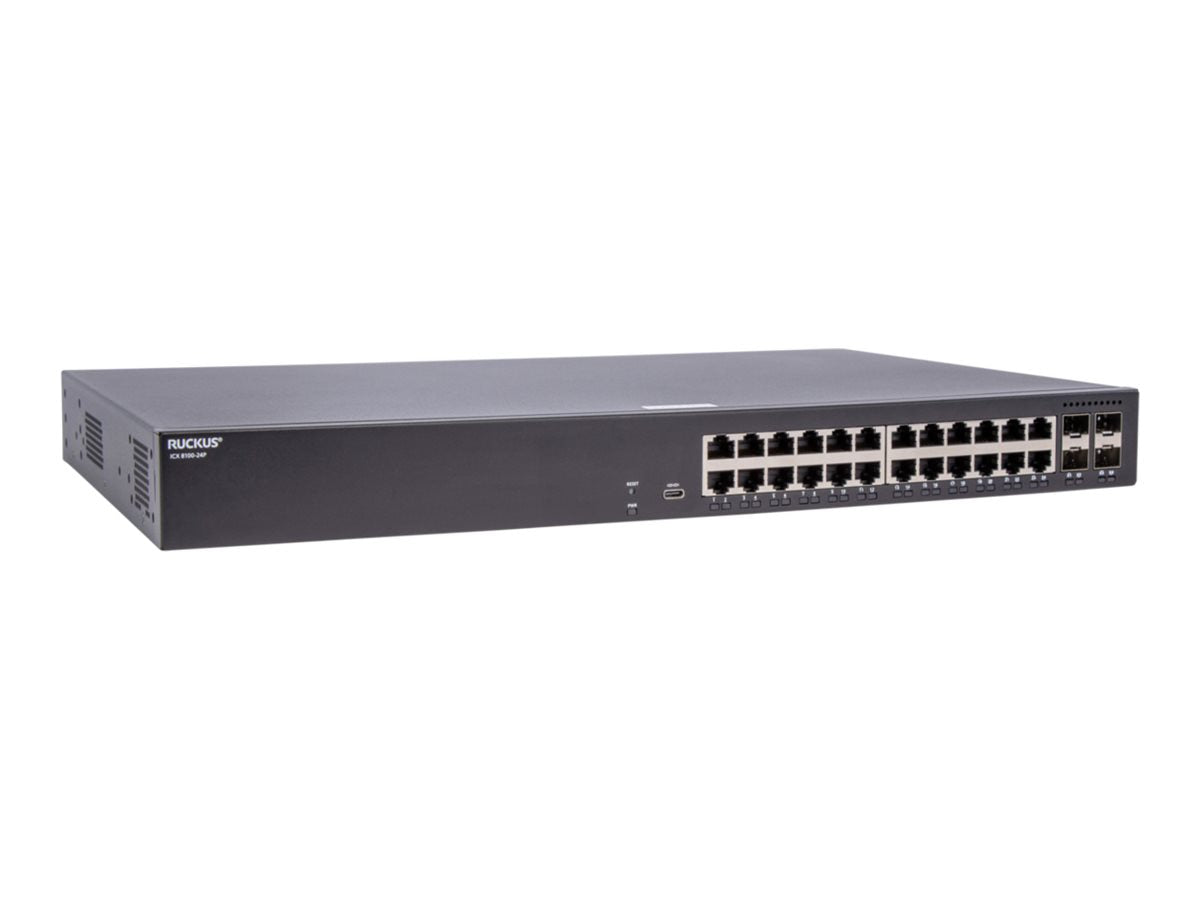

Switch de Red Ruckus ICX 8100-24P
Promo Online 🔥
Descripción:
Sobre este producto
- 🔌 24 puertos Gigabit PoE+ más 4 uplinks 10 Gigabit SFP+
- ⚡ Presupuesto PoE+ de 370 W para dispositivos de alta demanda
- 🚀 96 Mpps de forwarding y 128 Gbps de capacidad de conmutación para alto tráfico
- 🔒 Seguridad robusta con cifrado AES y autenticación RADIUS; hasta 8192 VLANs
- 🛡️ MTBF de 741,863 horas y operación confiable entre 0 °C y 45 °C
- 🛠️ Administrado vía SNMP y CLI, montable en rack
| Característica | Detalle |
|---|---|
| Marca | Ruckus |
| Línea de producto | Ruckus ICX |
| Modelo | 8100-24P |
| Fabricante | Ruckus Wireless |
| Flash Memory Installed | 8 GB |
| RAM instalada | 2 GB |
| Estándares | IEEE 802.1 AVB, IEEE 802.1ab (LLDP), IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Características | 802.1x authentication, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS) protection, DHCP relay, DHCP server, DHCP snooping, Double VLAN mode, DSCP/ToS mapping, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Energy-Efficient Ethernet (EEE), Flexible authentication, High Availability, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, Inter-Packet Gap (IPG) adjustment, IPv6 Neighbor Discovery Inspection, Layer 2 switching, Link Fault Signaling (LFS), MAC address authentication, MAC address blocking, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, Syslog support, Traffic management, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), VLAN mapping, Web authentication |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 32K entries |
| Manageable | Yes |
| PoE Budget | 370 watt |
| Ports | 24 |
| Power Over Ethernet (PoE) | PoE+ |
| Tipo de producto | Switch |
| Gestión remota | BOOTP, CLI, DHCP, HTTP, HTTPS, NTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, PIM-SM, PIM-SMv6 |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Interfaces | 1 x console USB Type-C, 12 x 10/100/1000 Base-T (PoE) RJ-45 15.4 W, 12 x 10/100/1000 Base-T (PoE+) RJ-45 30 W, 4 x 10Gbit LAN SFP+ uplink |
| Port Quantity | 24 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | 10 Gigabit SFP+ (uplink) |
| Frequency | 50 - 60 hertz |
| Potencia | 550 watt |
| Fuentes instaladas | 1 |
| Fuentes soportadas | 1 |
| Voltaje requerido | AC 100-240 volt |
| Encryption | AES |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| MTBF | 741,863 Hours |
| Humedad de operación | 10 - 90% (non-condensing) |
| Airflow Direction | Front and side to back |
| Authentication Method | RADIUS, RADSEC, Secure Shell v.2 (SSH2), TACACS, TACACS+ |
| Capacity | ARP entries: 8192, IGMP multicast groups: 4096, Link aggregation groups: 128, Maximum member ports per LAG: 8, Maximum number of VLANs: 4095, MLD multicast groups: 512, Packet buffer size: 4 MB, PVLANs supported: 32, QoS priority queues per port: 8, STP instances: 254 |
| Device Type | Internal power supply |
| Cantidad por empaque | 1 |
| Performance | Forwarding capacity: 96 Mpps, Switching capacity: 128 Gbps |
| Ports (2nd) Quantity | 4 |
| Service Activation | No |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 9.48 lbs |
| Ancho | 17.3 inch |
| Profundidad | 11 inch |
| Color | Black |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
Switch de Red Ruckus ICX 8100-24P
Precio de oferta$5,360
Precio normal$6,593
