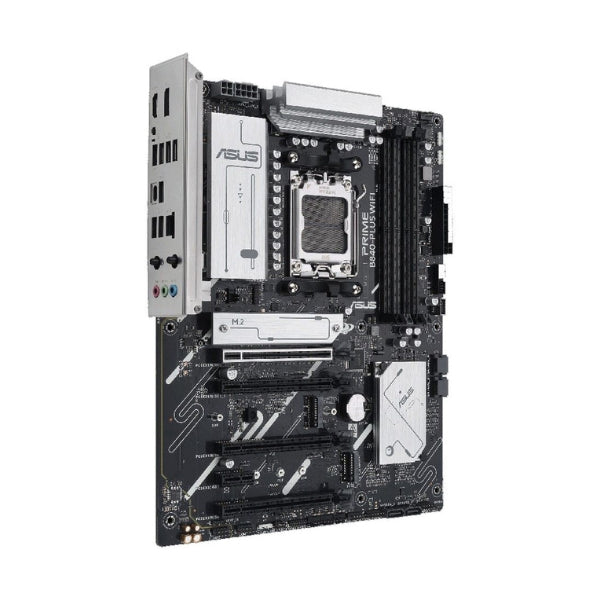

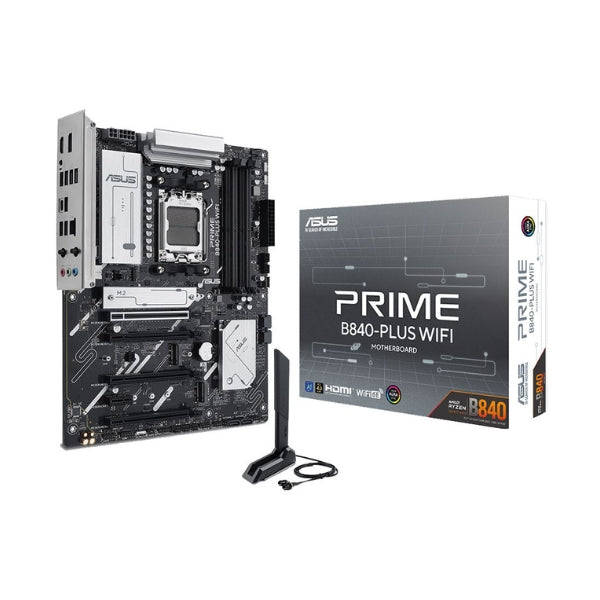

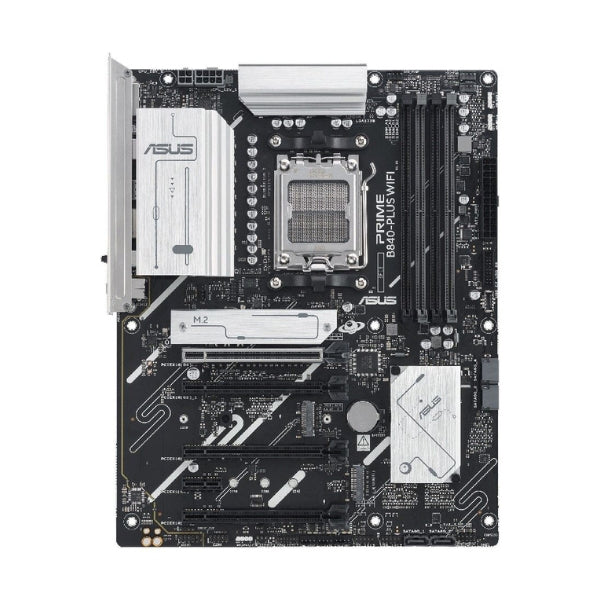

Tarjeta Madre ASUS B840-PLUS PRIME Wifi AMD AM5 ATX
Promo Online 🔥
Descripción:
Sobre este producto
- 🤖 Diseño Advanced AI PC-ready — optimizada por software y firmware para ofrecer la potencia y conectividad que demandan las aplicaciones de IA.
- ⚙️ Chipset AMD B840 y socket AM5 — compatible con procesadores AMD Ryzen serie 9000; BIOS UEFI AMI de 256 Mb con gestión WOL y PXE.
- 🧠 DDR5 hasta 192GB con soporte ECC — 4 ranuras DIMM en Dual Channel (48GB máx por módulo) y velocidades de hasta 7600+ MHz (OC), con memoria ECC y Non-ECC.
- 💾 Triple M.2 y SATA con RAID completo — 3 x M.2 Socket 3 M Key (2242/2260/2280), 4 puertos SATA 6Gb/s y RAID 0/1/5/10.
- 🌐 WiFi 6E y LAN 2.5G — WiFi 6E (802.11ax) con Bluetooth 5.3 y Ethernet Realtek de 2.5Gb (hasta 2500Mbps).
- 🔊 Audio Realtek 7.1 canales — salida de sonido envolvente de 7.1 canales para multimedia y juego.
| Característica | Detalles |
|---|---|
| Tipo de producto | Tarjeta Madre |
| Marca | ASUS |
| Modelo | PRMB840PLUSWF |
| UPC | 197105797277 |
| Packaging | Retail |
| Chipset | AMD B840 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL | PXE |
| AMD CPU Support | Ryzen |
| Socket | AM5 |
| ECC | Non-ECC; Non-Registered | ECC; Non-Registered |
| Tipo de memoria | DDR5-4800 | DDR5-5200 | DDR5-5400 | DDR5-5600 | DDR5-4400 | DDR5-5000 |
| Memory Speeds Supported | 7600+(OC) |
| Memory Slots | 4 x 288pin DIMM |
| Memory Channel Support | Dual Channel |
| Max Memory Supported | 192GB |
| Maximum Memory Supported Per Slot | 48GB |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 | 2260 | 2280 |
| SATA Express | 3 x M.2 Socket 3 | M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 | RAID 1 | RAID 5 | RAID 10 |
| Audio Chipset | Realtek |
| Audio Channels | 7.1 |
| WiFi Support | Onboard WiFi |
| LAN Chipset | Realtek 2.5Gb Ethernet |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless Technology | 802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.3 | WiFi 6E (802.11ax) |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 3 |
| PCI Express x1 | 1 |

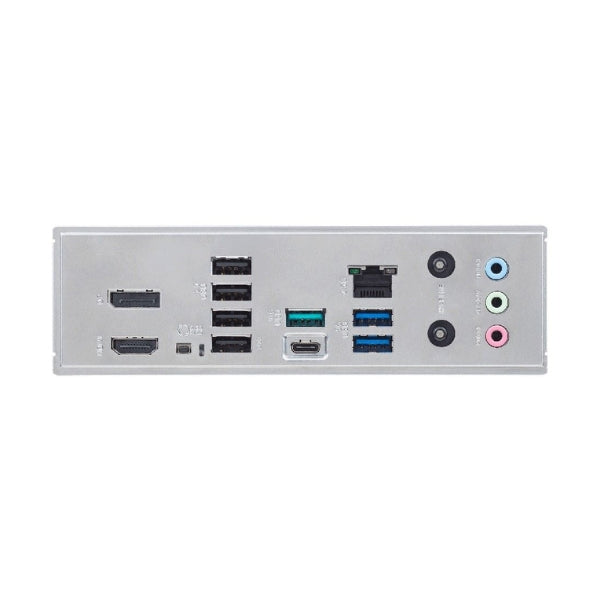

| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone | 1 x 3.5 mm Line-In | 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 4 x USB 2.0 (Type-A) |
| USB 3.1 | 1 x USB 3.2 (Gen 2 Type-C) | 1 x USB 3.2 (Gen 2 Type-A) | 2 x USB 3.2 (Gen 1 Type-A) |
| Video Connectors | 1 x HDMI 2.1 | 1 x DisplayPort 1.4 |
| Headers | 4 x System Fan Header | 1 x Water Pump Header | 2 x CPU Fan Header |
| USB | 2 x USB 2.0 Headers (4 Ports) | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) | 1 x USB 3.2 Gen 1 Type-C Header (1 Port) |
| Other I/O | 3 x Addressable LED Headers |
| Power Connectors | 1 x 24-pin ATX Connector | 1 x 8-pin +12 V Connector | 1 x 4-pin +12 V Connector |
| Conector ATX | 24-pin ATX Power Connector |
| Profundidad | 12.00 in. (305.00 mm) |
| Ancho | 9.61 in. (244.00 mm) |
| Factor de forma | ATX |
Tarjeta Madre ASUS B840-PLUS PRIME Wifi AMD AM5 ATX
Precio de oferta$305
Precio normal$388
