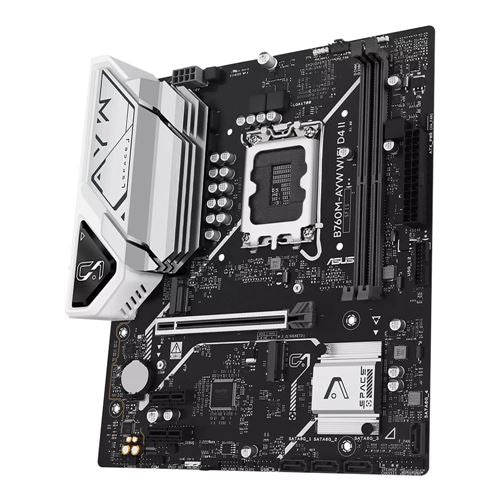

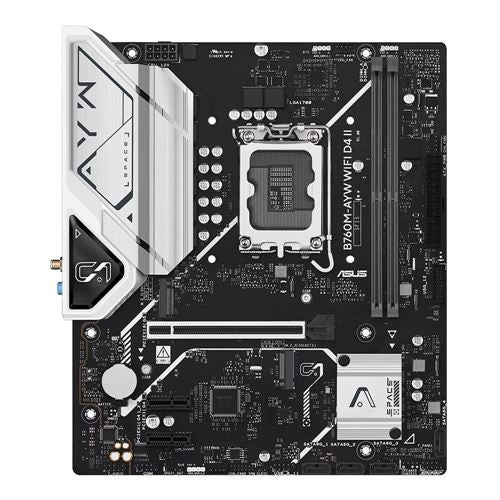

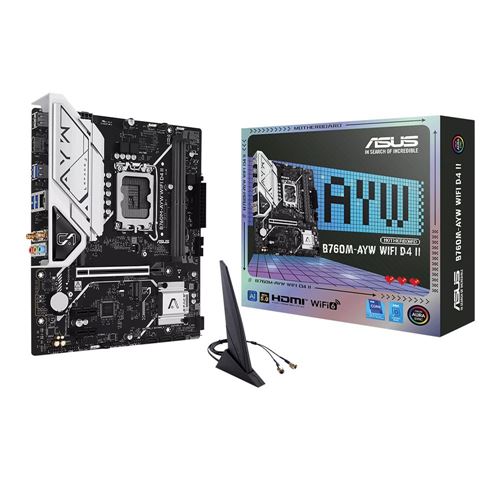

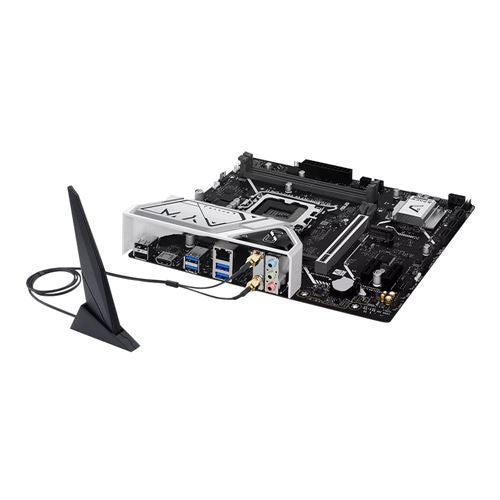

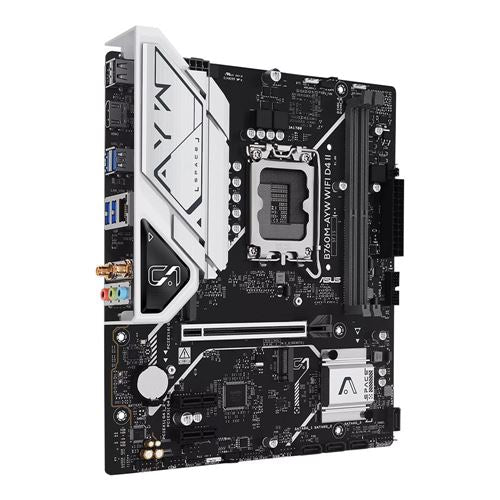

Tarjeta Madre ASUS B760M-AYW WIFI D4 II Intel LGA 1700 microATX Motherboard
Descripción:
Sobre este producto
- 💡 Optimizada para Intel 14ª Gen — diseño de energía robusto y opciones de ajuste inteligente mediante software y firmware para exprimir los procesadores Core de 14ª generación.
- ⚙️ Chipset Intel B760 y socket LGA 1700 — compatible con Core i9, i7, i5, i3 y Pentium; BIOS AMI UEFI de 128Mb.
- 🧠 DDR4 hasta 64GB económica — 2 ranuras DIMM en Dual Channel (32GB máx por módulo) con velocidades de hasta 5333 MHz (OC), ideal para reutilizar módulos DDR4.
- 💾 M.2 2280 y SATA con RAID avanzado — 2 x M.2 Socket 3 M Key, 4 puertos SATA 6Gb/s y RAID 0/1/5/10 para almacenamiento versátil.
- 🌐 WiFi 6 y LAN 2.5G — WiFi 6 (802.11ax) con Bluetooth 5.3 y LAN RJ-45 de 2.5G (hasta 2500Mbps) para conectividad moderna.
- 🎛️ Expansión PCIe 5.0 — 1 slot PCI Express 5.0 x16 más 2 slots PCI Express x1 para tarjetas gráficas y de expansión.
| Característica | Detalles |
|---|---|
| Tipo de producto | Tarjeta Madre |
| Marca | ASUS |
| Modelo | B760MAYWWFD4II |
| UPC | 199291065475 |
| Packaging | Retail |
| Chipset | Intel B760 |
| BIOS | 128Mb AMI UEFI Bios |
| Manageability | WOL |
| Intel CPU Support | Core i7 | Core i5 | Core i3 | Pentium | Core i9 |
| Socket | LGA 1700 |
| ECC | Non-ECC; Non-Registered |
| Tipo de memoria | DDR4-2133 | DDR4-2400 | DDR4-2666 | DDR4-2933 | DDR4-3200 | DDR4-2800 | DDR4-3000 |
| Memory Speeds Supported | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Memory Slots | 2 x 288pin DIMM |
| Memory Channel Support | Dual Channel |
| Max Memory Supported | 64GB |
| Maximum Memory Supported Per Slot | 32GB |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2280 |
| SATA Express | 2 x M.2 Socket 3 | M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 | RAID 1 | RAID 5 | RAID 10 |
| Audio Channels | 7.1 |
| WiFi Support | Onboard WiFi |
| LAN Speed | 10/100/1000/2500Mbps |
| Wireless Technology | 802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.3 |
| PCI Express 5.0 x16 | 1 |
| PCI Express x1 | 2 |
| LAN Ports | 1 x 10/100/1000/2500 RJ-45 LAN |
| Audio Ports | 1 x 3.5 mm Microphone | 1 x 3.5 mm Line-In | 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 2.0 | 2 x USB 2.0 (Type-A) |
| USB 3.1 | 4 x USB 3.2 (Gen 1 Type-A) |
| Video Connectors | 1 x HDMI 2.1 |
| Headers | 1 x CPU Fan Header | 2 x System Fan Header |
| USB | 1 x USB 2.0 Header (2 Ports) | 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) |
| Other I/O | 3 x Addressable LED Headers |
| Power Connectors | 1 x 24-pin ATX Connector | 1 x 8-pin +12 V Connector |
| Conector ATX | 24-pin ATX Power Connector |
| Profundidad | 9.61 in. (244.00 mm) |
| Ancho | 9.61 in. (244.00 mm) |
| Box Dimensions (WxDxH) | 10.49 x 10.83 x 2.66 in. (266.45 x 275.08 x 67.56 mm) |
| Factor de forma | microATX |
Tarjeta Madre ASUS B760M-AYW WIFI D4 II Intel LGA 1700 microATX Motherboard
Precio de oferta$182
Precio normal$227
