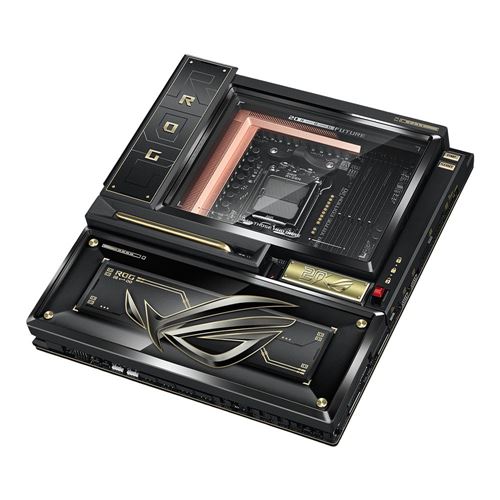

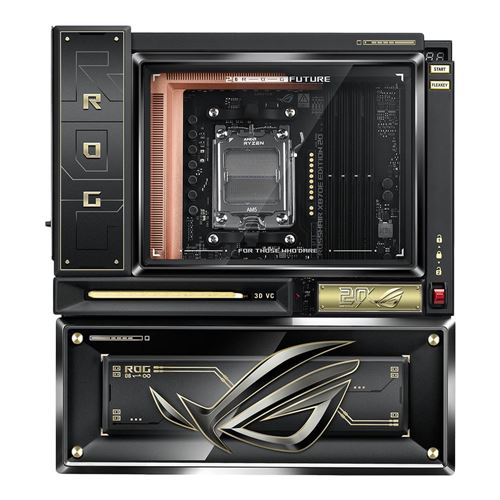

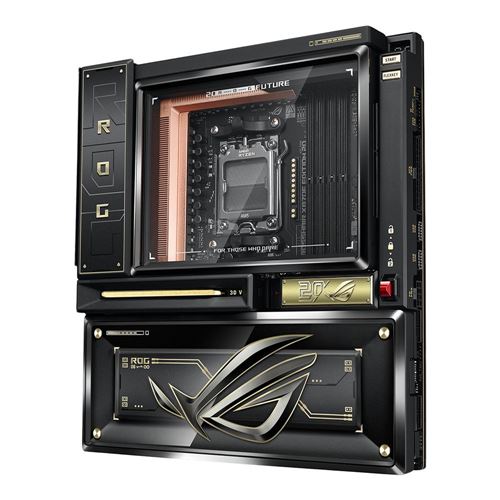

Tarjeta Madre ASUS X870E ROG CROSSHAIR EDITION 20 AMD AM5 ATX Motherboard
Descripción:
Sobre este producto
- 🏆 Edición 20º aniversario ROG: placa de coleccionista con diseño icónico, 24+2+2 fases de alimentación y disipación VRM de cobre macizo para estabilidad y rendimiento sin concesiones.
- ⚙️ Chipset AMD X870E + socket AM5: soporta procesadores AMD Ryzen con doble BIOS AMI UEFI de 64 Mb (512 Mb) y gestión WOL.
- 🧠 Memoria DDR5 hasta 256GB: 4 ranuras DIMM en Dual Channel con amplio abanico de perfiles DDR5 (4400 a 6200) y 64GB por módulo.
- 💾 Hasta 9 ranuras M.2: 9 x M.2 Socket 3 M Key, 4 puertos SATA 6Gb/s y soporte RAID 0/1/5/10 para una expansión de almacenamiento excepcional.
- 📡 WiFi 7 MediaTek + 10G LAN: módulo MediaTek Wi-Fi 7 MT7927 con Bluetooth 5.4 y LAN Realtek de 10 Gbps.
- 🔊 Audio ROG SupremeFX ALC4082 7.1: solución de audio de gama alta con salida de 7.1 canales para sonido de alta fidelidad.
| Característica | Detalles |
|---|---|
| Tipo de producto | Tarjeta Madre |
| Marca | ASUS |
| Modelo | ROGX870E20TH |
| UPC | 199291650985 |
| Packaging | Retail |
| Chipset | AMD X870E |
| BIOS | 2 x 64Mb (512Mb) AMI UEFI BIOS |
| Manageability | WOL |
| AMD CPU Support | Ryzen |
| Socket | AM5 |
| ECC | Non-ECC; Non-Registered | ECC; Non-Registered |
| Tipo de memoria | DDR5-4800 | DDR5-5200 | DDR5-5400 | DDR5-5600 | DDR5-4400 | DDR5-5000 | DDR5-6200 | DDR5-6000 | DDR5-5800 |
| Memory Slots | 4 x 288pin DIMM |
| Memory Channel Support | Dual Channel |
| Max Memory Supported | 256GB |
| Maximum Memory Supported Per Slot | 64GB |
| Onboard Graphic Chipset | Requires CPU with Integrated Graphics |
| M.2 Port Type | 2242 | 2260 | 2280 | 2230 | 22110 |
| SATA Express | 9 x M.2 Socket 3 | M Key |
| SATA 6Gb/s | 4 |
| RAID Support | RAID 0 | RAID 1 | RAID 5 | RAID 10 |
| Audio Chipset | ROG SupremeFX ALC4082 |
| Audio Channels | 7.1 |
| WiFi Support | Onboard WiFi |
| LAN Chipset | Realtek 10Gb Ethernet |
| LAN Speed | 100/1000/2500/5000/10000Mbps |
| Wireless LAN Chipset | MediaTek Wi-Fi 7 MT7927 |
| Wireless Technology | 802.11b | 802.11g | 802.11a | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | WiFi 6 (802.11ax) | Bluetooth v5.4 | WiFi 7 (802.11be) |
| PCI Express 5.0 x16 | 2 |
| LAN Ports | 2 x 100/1000/2500/5000/10000Mbps |

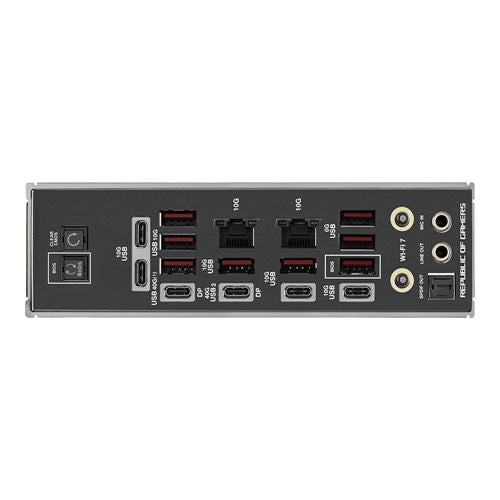

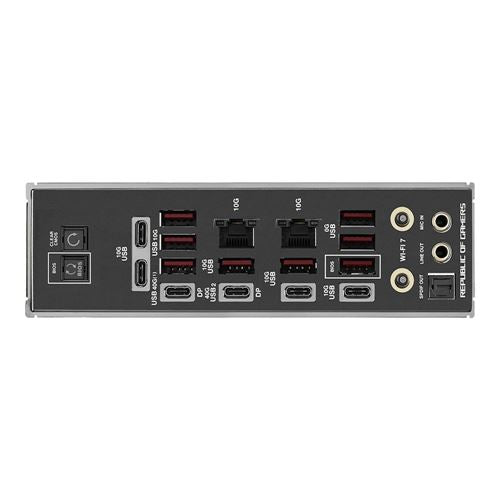

| Buttons | Clear CMOS | BIOS Flashback |
| Audio Ports | 1 x 3.5 mm Microphone | 1 x 3.5 mm Line-Out |
| Specialty Ports | 2 x WiFi Antenna Ports |
| USB 3.1 | 8 x USB 3.2 (Gen 2 Type-A) | 2 x USB4 (Type-C 40 Gb/s) | 4 x USB 3.2 (Gen 2 Type-C) |
| Digital Audio | 1 x Optical |
| Headers | 2 x System Fan Header | 2 x CPU Fan Header | 2 x Water Pump Header |
| USB | 3 x USB 2.0 Headers (6 Ports) | 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) | 2 x USB 3.2 Gen 2x2 Type-C Headers (2 Ports) |
| Other I/O | 2 x Addressable LED Headers |
| Power Connectors | 1 x 24-pin ATX Connector | 2 x 8-pin +12 V Connector | 1 x 8-pin PCIe Power Connector |
| Conector ATX | 24-pin ATX Power Connector |
| Profundidad | 12.00 in. (304.80 mm) |
| Ancho | 10.90 in. (276.70 mm) |
| Box Dimensions (WxDxH) | 26.20 x 25.80 x 13.20 in. (665.48 x 655.32 x 335.28 mm) |
| Factor de forma | eATX |
Tarjeta Madre ASUS X870E ROG CROSSHAIR EDITION 20 AMD AM5 ATX Motherboard
Precio de oferta$9,464
Precio normal$11,641
