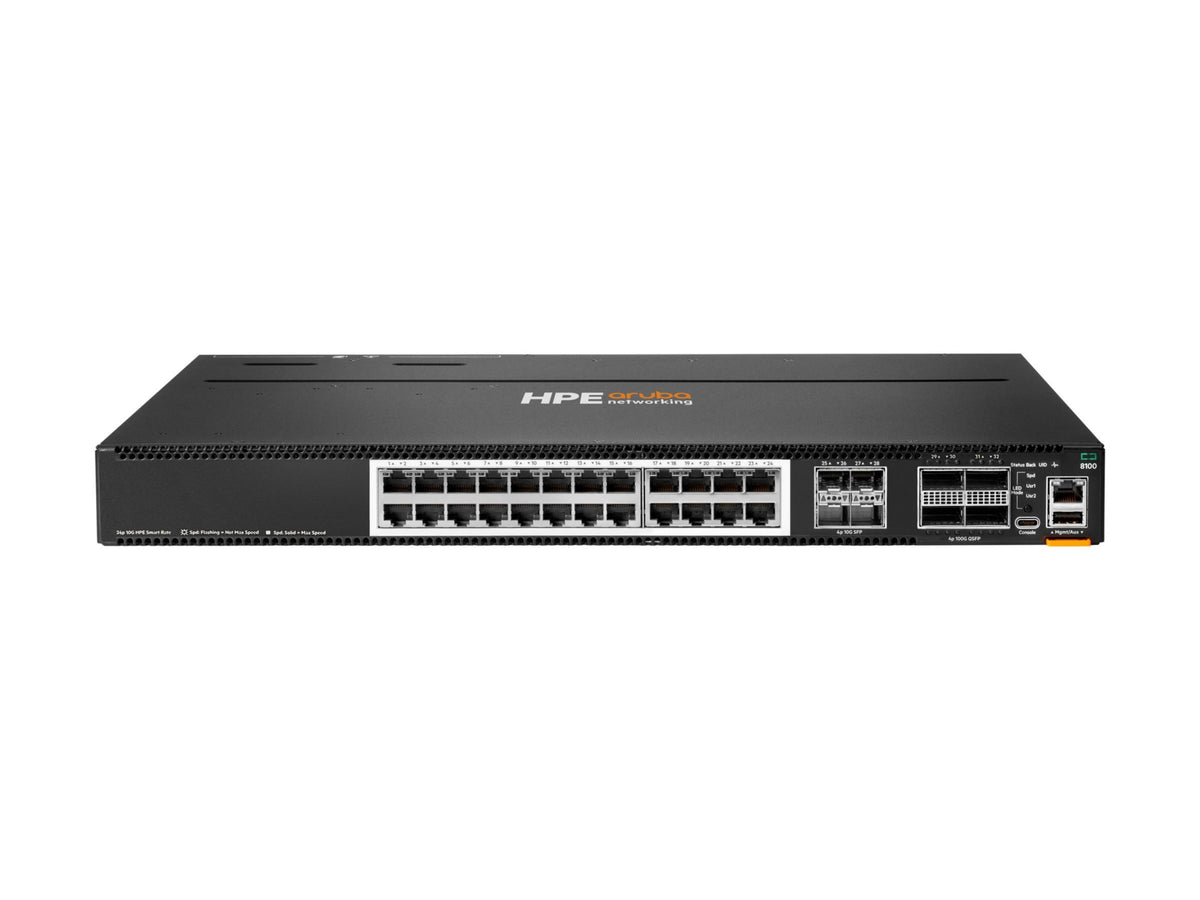

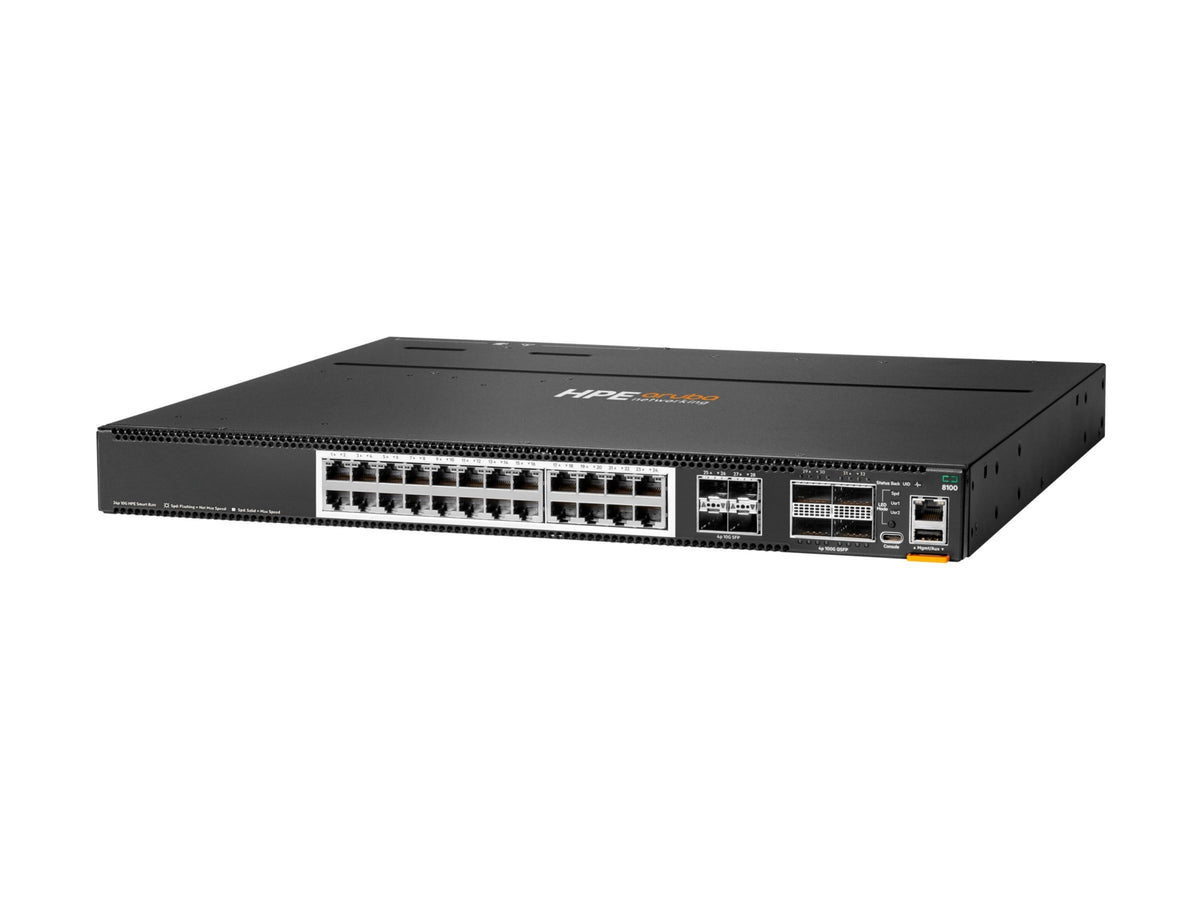

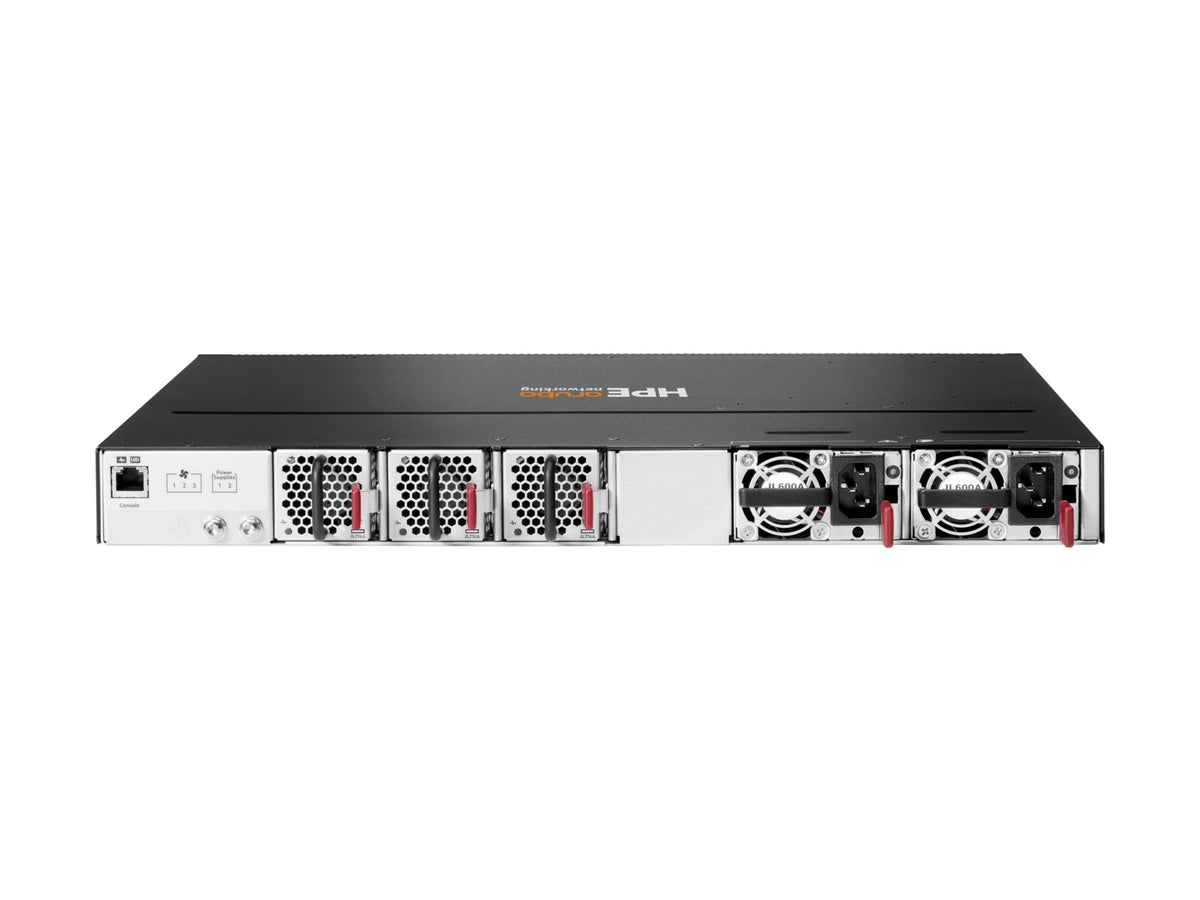

Switch de Red Aruba HPE Aruba Networking CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 Switch
Promo Online 🔥
Descripción:
%20+%204%20puertos%20SFP+%20+%204%20puertos%20QSFP28%20de%2040/100G.%0A%F0%9F%8F%A2%20Enfoque%20flexible%20para%20el%20core%20y%20la%20capa%20de%20agregaci%C3%B3n%20de%20campus%20y%20centros%20de%20d...
){kind=link}
Sobre este producto
- 🔌 24 puertos 10GBase-T (Smart Rate 1/2.5/5/10G) + 4 puertos SFP+ + 4 puertos QSFP28 de 40/100G.
- 🏢 Enfoque flexible para el core y la capa de agregación de campus y centros de datos dinámicos.
- 🔀 Ideal para clientes que requieren 1 GbE/10 GbE con mezcla de puertos de fibra y cobre y uplinks 40/100 GbE.
- 🔒 Switch L3 administrado para las demandas de la era móvil, cloud e IoT.
- ❄️ Flujo de aire front-to-back y formato rack-mountable.
| Característica | Detalle |
|---|---|
| Marca | Aruba |
| Línea de producto | HPE Aruba Networking CX |
| Modelo | 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 Switch |
| Fabricante | Aruba Data Center Switches |
| Velocidad de reloj | 1.8 GHZ |
| Marca del procesador | ARM |
| Número de procesador | Cortex-A72 |
| Procesadores instalados | 1 |
| Flash Memory Installed | 32 GB |
| RAM instalada | 16 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| Características | Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Bidirectional Forwarding Detection (BFD), Border Gateway Protocol 4 (BGP-4), Bridge protocol data unit (BPDU), Data Center Bridging (DCB), Dynamic VXLAN with BGP-EVPN, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Generic Routing Encapsulation (GRE), Layer 2 switching, Layer 3 routing, Network Timing Protocol (NTP), Open Shortest Path First (OSPF), Policy based routing, Port mirroring, Quality of Service (QoS), Rapid PVST+ (RPVST+), RDMA over Converged Ethernet (RoCE), RDMA over Converged Ethernet (RoCE) v2, sFlow, Unidirectional Link Detection (UDLD) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 147456 entries |
| Manageable | Yes |
| Ports | 24 |
| Tipo de producto | Switch |
| Gestión remota | MIB, SNMP, SNMP 2, SNMP 3 |
| Routing Protocol | BGP-4, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-2 |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| QSFP Slots | 40 Gigabit QSFP+ / 100 Gigabit QSFP28 |
| Interfaces | 1 x serial RJ-45, 1 x USB Type A AUX, 1 x USB-C console, 24 x 100/1000/2.5G/5G/10GBase-T RJ-45, 4 x 40/100Gbit LAN QSFP28/QSFP+, 4 x Gigabit / 10Gbit LAN SFP+ |
| Port Quantity | 24 |
| Port Type | 100/1000/2.5G/5G/10GBase-T |
| Ports Type (2nd) | Gigabit SFP / 10 Gigabit SFP+ |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Fuentes instaladas | 2 |
| Fuentes soportadas | 2 |
| Voltaje requerido | AC 100-127/200-240 volt |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Humedad de operación | 15 - 95% (non-condensing) |
| Operating System Required | AOS-CX |
| Airflow Direction | Front to back airflow |
| Authentication Method | RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+ |
| Capacity | IGMP groups: 4000, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 16384, IPv4 routes (Multicast): 4096, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 4096, IPv6 routes (Multicast): 4096, Link aggregation groups: 54, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 16384, Maximum number of VLANs: 1024, MLD groups: 4000, Packet buffer size: 32 MB |
| País | United States |
| Device Type | Internal power supply |
| Localization | English |
| Cantidad por empaque | 1 |
| Performance | Switching capacity: 1.36 Tbps |
| Ports (2nd) Quantity | 4 |
| Ports (3rd) Quantity | 4 |
| Accesorios incluidos | 2-Post Rack Kit, 3 fan trays |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 18.3 lbs |
| Ancho | 17.4 inch |
| Profundidad | 16 inch |
| Color | Black |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
| Standby Power Consumption | 120 watt |
Switch de Red Aruba HPE Aruba Networking CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 Switch
Precio de oferta$11,741
Precio normal$14,441
