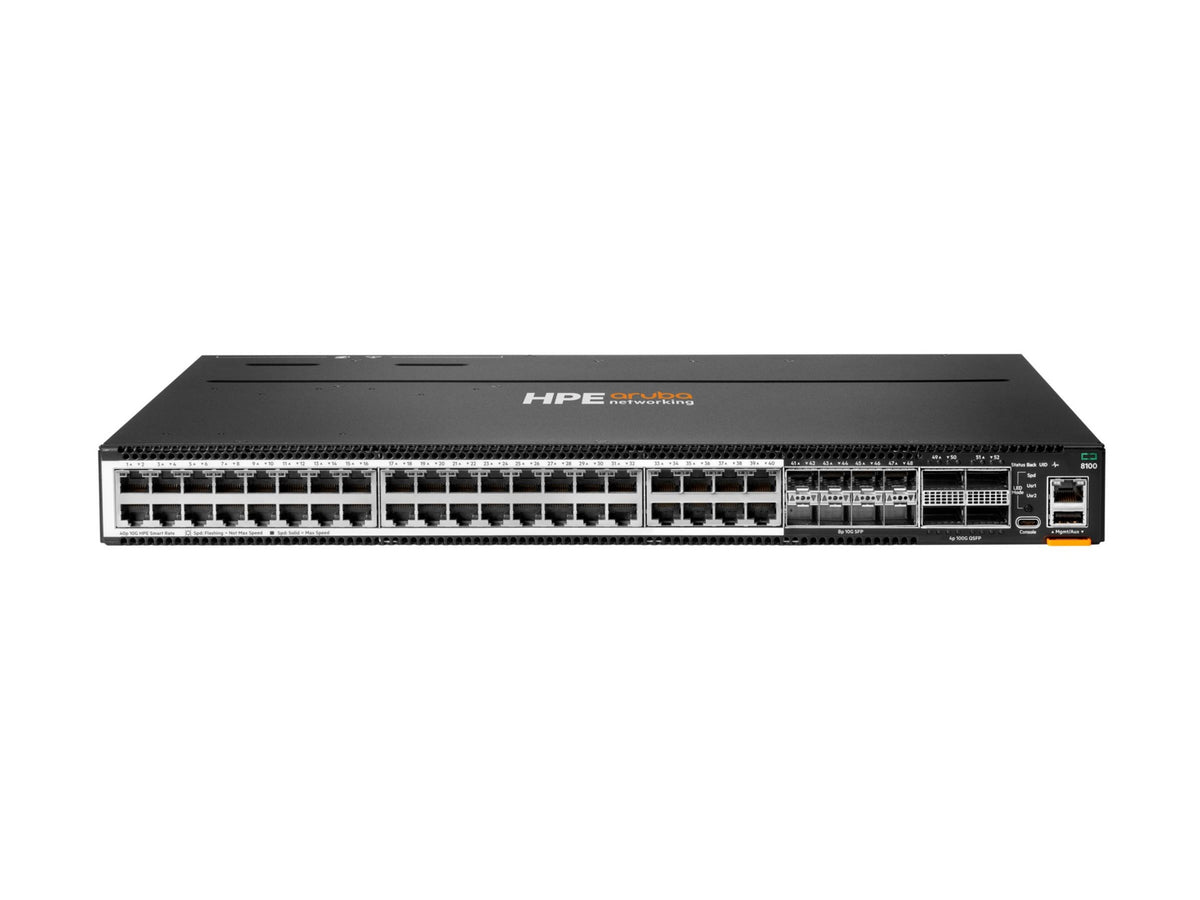

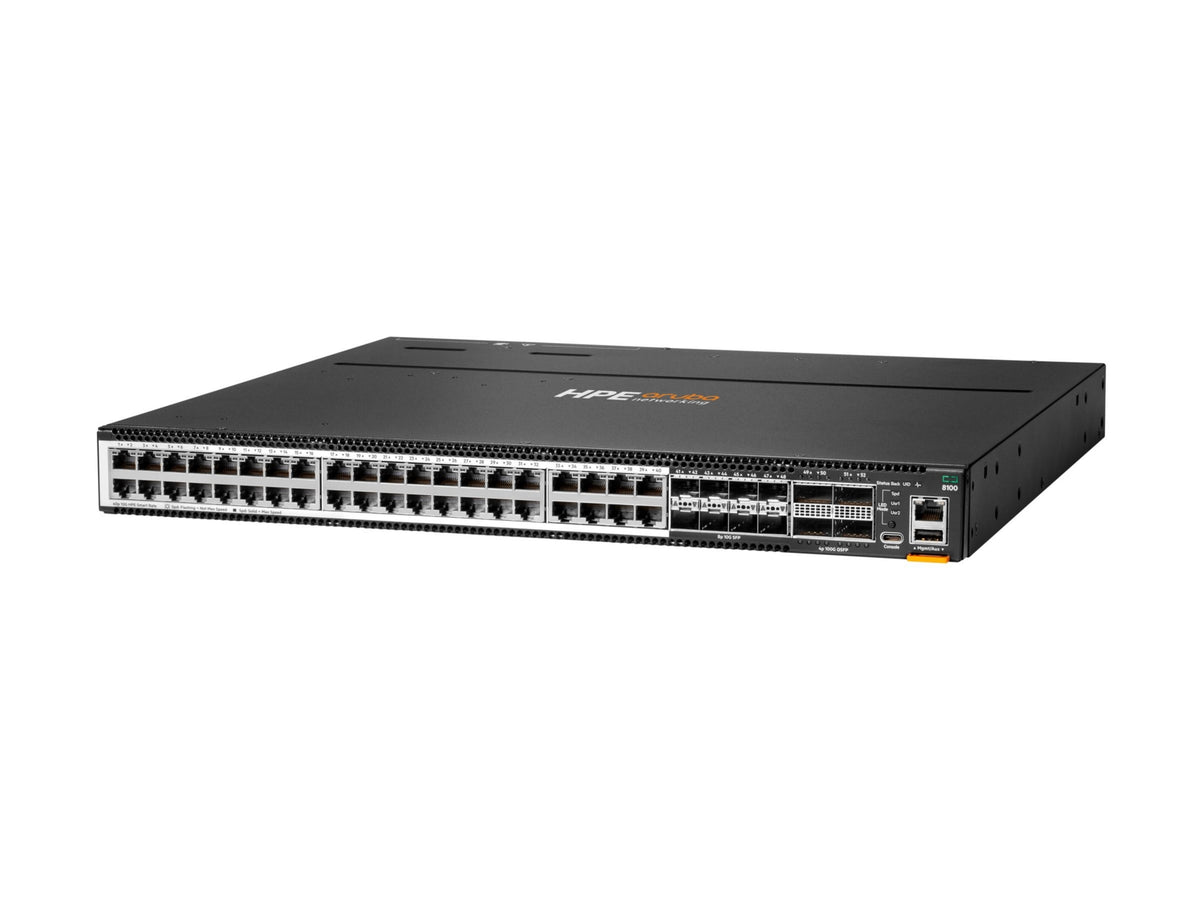

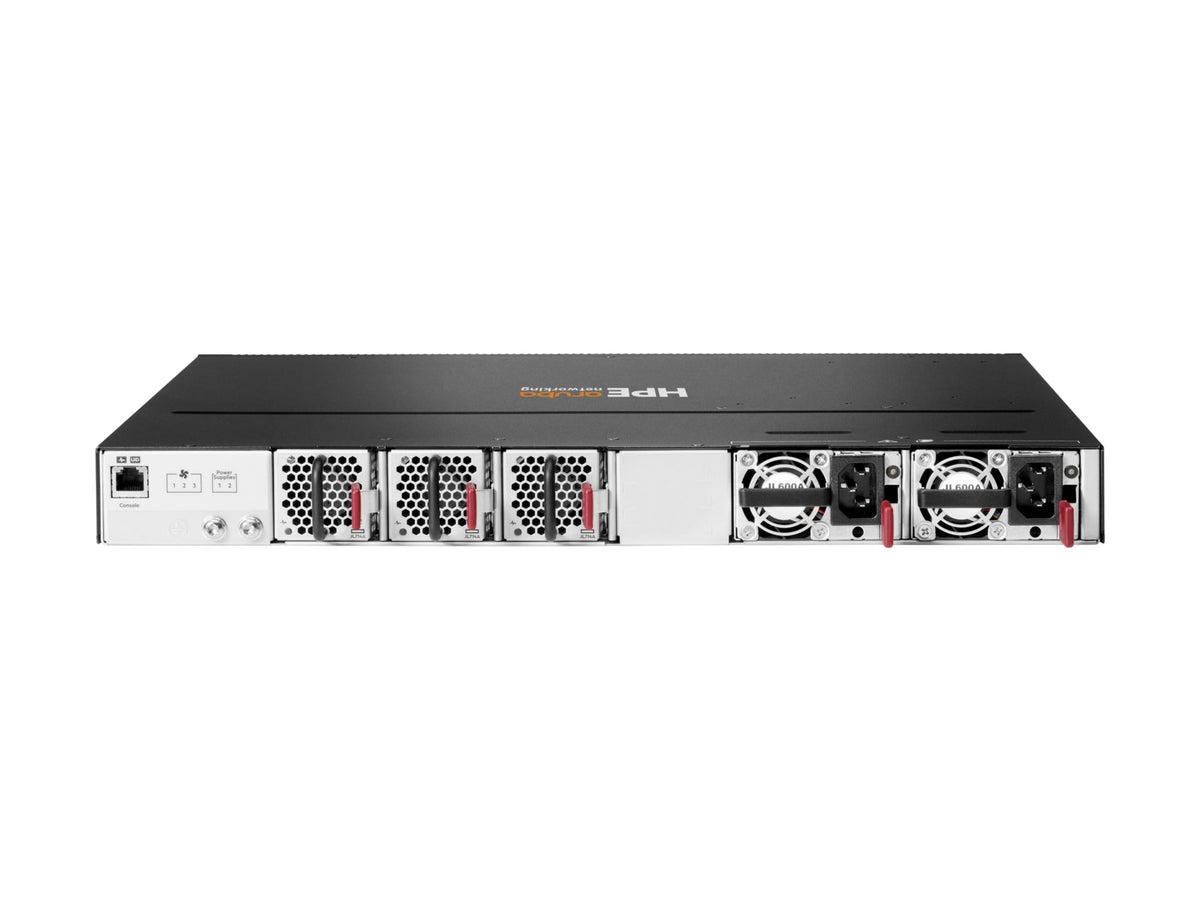

Switch de Red Aruba HPE Aruba Networking CX 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch
Promo Online 🔥
Descripción:
%20+%208%20puertos%20SFP+%20+%204%20puertos%20QSFP28%20de%2040/100G.%0A%F0%9F%9A%80%20Capacidad%20de%20hasta%201,76%20Tbps%20con%20interfaces%20a%20velocidad%20de%20l%C3%ADnea%20(line-rate).%0A...
){kind=link}
Sobre este producto
- 🔌 40 puertos 10GBase-T (Smart Rate 1/2.5/5/10G) + 8 puertos SFP+ + 4 puertos QSFP28 de 40/100G.
- 🚀 Capacidad de hasta 1,76 Tbps con interfaces a velocidad de línea (line-rate).
- 🏢 Enfoque flexible para el core y la capa de agregación de campus y centros de datos dinámicos.
- 🔒 Switch L3 administrado para las demandas de seguridad y escalabilidad de la era móvil, cloud e IoT.
- ❄️ Flujo de aire back-to-front y formato rack-mountable.
| Característica | Detalle |
|---|---|
| Marca | Aruba |
| Línea de producto | HPE Aruba Networking CX |
| Modelo | 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch |
| Fabricante | Aruba Data Center Switches |
| Velocidad de reloj | 1.8 GHZ |
| Marca del procesador | ARM |
| Número de procesador | Cortex-A72 |
| Procesadores instalados | 1 |
| Flash Memory Installed | 32 GB |
| RAM instalada | 16 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| Características | Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Bidirectional Forwarding Detection (BFD), Border Gateway Protocol 4 (BGP-4), Bridge protocol data unit (BPDU), Data Center Bridging (DCB), Dynamic VXLAN with BGP-EVPN, Equal-Cost Multipath (ECMP), Ethernet Ring Protection Switching (ERPS), Generic Routing Encapsulation (GRE), Layer 2 switching, Layer 3 routing, Network Timing Protocol (NTP), Open Shortest Path First (OSPF), Policy based routing, Port mirroring, Quality of Service (QoS), Rapid PVST+ (RPVST+), RDMA over Converged Ethernet (RoCE), RDMA over Converged Ethernet (RoCE) v2, sFlow, Unidirectional Link Detection (UDLD) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 147456 entries |
| Manageable | Yes |
| Ports | 40 |
| Tipo de producto | Switch |
| Gestión remota | MIB, SNMP, SNMP 2, SNMP 3 |
| Routing Protocol | BGP-4, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-2 |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| QSFP Slots | 40 Gigabit QSFP+ / 100 Gigabit QSFP28 |
| Interfaces | 1 x serial RJ-45, 1 x USB Type A AUX, 1 x USB-C console, 4 x 40/100Gbit LAN QSFP28/QSFP+, 4 x Gigabit / 10Gbit LAN SFP+, 40 x 100/1000/2.5G/5G/10GBase-T RJ-45 |
| Port Quantity | 40 |
| Port Type | 100/1000/2.5G/5G/10GBase-T |
| Ports Type (2nd) | Gigabit SFP / 10 Gigabit SFP+ |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Potencia | 550 watt |
| Fuentes instaladas | 2 |
| Fuentes soportadas | 2 |
| Voltaje requerido | AC 100-127/200-240 volt |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Humedad de operación | 15 - 95% (non-condensing) |
| Operating System Required | AOS-CX |
| Airflow Direction | Back to front airflow |
| Authentication Method | RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+ |
| Capacity | IGMP groups: 4000, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 16384, IPv4 routes (Multicast): 4096, IPv4 routes (Unicast): 24576, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 4096, IPv6 routes (Multicast): 4096, IPv6 routes (Unicast): 12288, Link aggregation groups: 54, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 16384, Maximum number of VLANs: 1024, MLD groups: 4000, Packet buffer size: 32 MB |
| País | United States |
| Device Type | Internal power supply |
| Localization | English |
| Cantidad por empaque | 1 |
| Performance | Switching capacity: 1.76 Tbps |
| Ports (2nd) Quantity | 8 |
| Ports (3rd) Quantity | 4 |
| Accesorios incluidos | 2-Post Rack Kit, 3 fan trays |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 18.89 lbs |
| Ancho | 17.4 inch |
| Profundidad | 16 inch |
| Color | Black |
| Certificado ENERGY STAR | No |
| Standby Power Consumption | 120 watt |
Switch de Red Aruba HPE Aruba Networking CX 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch
Precio de oferta$14,671
Precio normal$18,045
